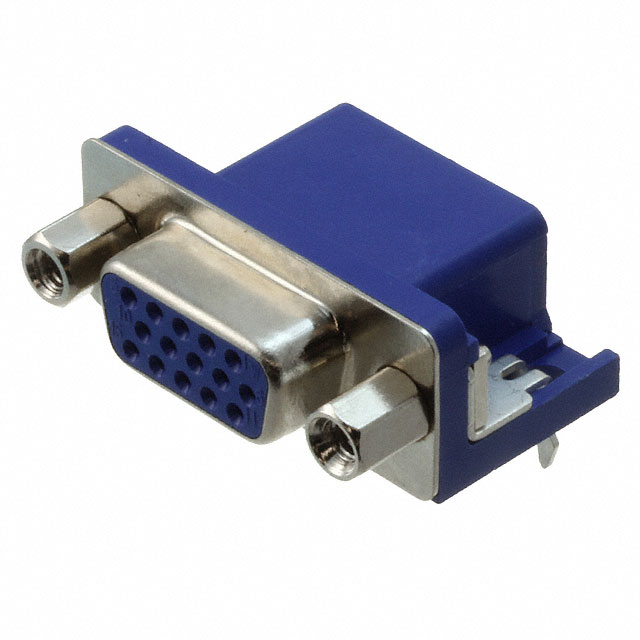

| Part Number | 1-1734344-2 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN DSUB HD RCPT 15POS R/A SLDR |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | AMPLIMITE HD-22 |
|---|
| Family | D-Sub Connectors |
|---|
| 3D Model |
1-1734344-2.pdf
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 100 |
|---|
| Packaging | Tray |
|---|
| Connector Style | D-Sub, High Density |
|---|
| Connector Type | Receptacle, Female Sockets |
|---|
| Number of Positions | 15 |
|---|
| Number of Rows | 3 |
|---|
| Shell Size, Connector Layout | 1 (DE, E) High Density |
|---|
| Contact Type | Signal |
|---|
| Mounting Type | Through Hole, Right Angle |
|---|
| Flange Feature | Mating Side; Female Screwlock (4-40) |
|---|
| Termination | Solder |
|---|
| Features | Board Lock |
|---|
| Shell Material, Finish | Steel, Nickel Plated |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | Flash |
|---|
| Ingress Protection | - |
|---|
| Operating Temperature | -55°C ~ 130°C |
|---|
| Voltage Rating | 125V |
|---|
| Current Rating | 2A |
|---|
| Housing Material | Polyamide (PA9T), Nylon 9T |
|---|
| Color | Blue |
|---|
| Other Names | 1-1734344-2-NDA114810 |
|---|
