| Part Number | 749084-5 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

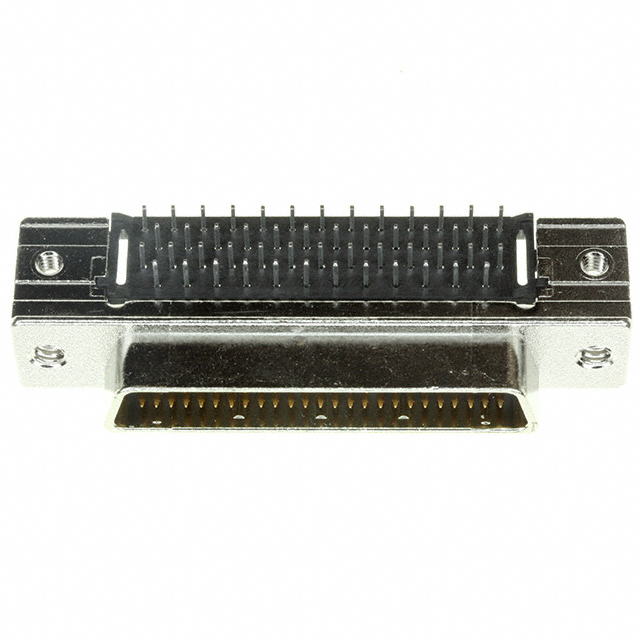

| Description | CONN D-TYPE PLUG 50POS R/A SLDR |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | AMPLIMITE .050 III |
|---|
| Family | D-Sub Connectors |
|---|
| 3D Model |
749084-5.pdf
|
|---|
| Standard Package | 10 |
|---|
| Packaging | Tube |
|---|
| Connector Style | D-Type |
|---|
| Connector Type | Plug, Male Pins |
|---|
| Number of Positions | 50 |
|---|
| Number of Rows | 2 |
|---|
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row |
|---|
| Contact Type | Signal |
|---|
| Mounting Type | Through Hole, Right Angle |
|---|
| Flange Feature | Housing/Shell (4-40) |
|---|
| Termination | Solder |
|---|
| Features | Shielded |
|---|
| Shell Material, Finish | - |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | Flash |
|---|
| Ingress Protection | - |
|---|
| Operating Temperature | -55°C ~ 105°C |
|---|
| Voltage Rating | 30V |
|---|
| Current Rating | 1A |
|---|
| Housing Material | Liquid Crystal Polymer (LCP) |
|---|
| Color | Black |
|---|
| Online Catalog | AMPLIMITE .050 III Series |
|---|
| Other Names | 749084-5-NDA115634 |
|---|
