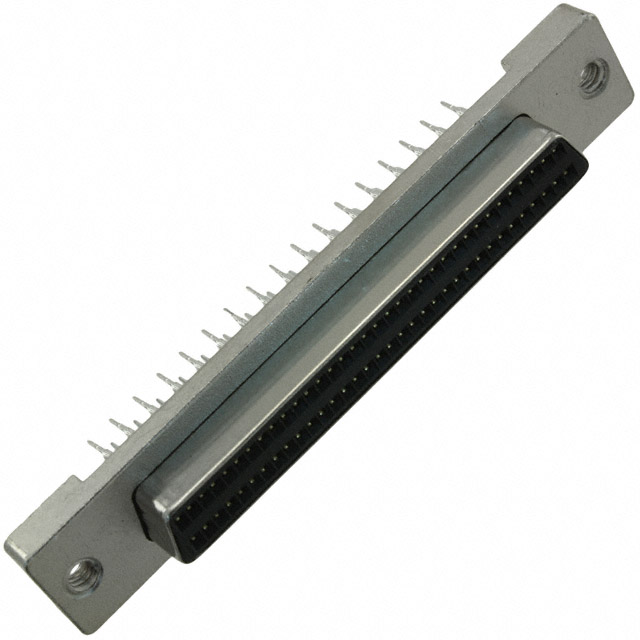

| Part Number | 786555-7 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN D-TYPE RCPT 68POS VERT |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | AMPLIMITE .050 III |
|---|
| Family | D-Sub Connectors |
|---|
| Other Related Documents |
Panel Cutout
|
|---|
| Product Training Modules |
AMPLIMITE D-Sub Connectors
|
|---|
| Featured Product |
AMPLIMITE D-Subminiature Connectors
|
|---|
| 3D Model |
786555-7.pdf
|
|---|
| Standard Package | 8 |
|---|
| Packaging | Tube |
|---|
| Connector Style | D-Type |
|---|
| Connector Type | Receptacle, Female Sockets |
|---|
| Number of Positions | 68 |
|---|
| Number of Rows | 2 |
|---|
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row |
|---|
| Contact Type | Signal |
|---|
| Mounting Type | Through Hole |
|---|
| Flange Feature | Housing/Shell (4-40) |
|---|
| Termination | Press-Fit |
|---|
| Features | Shielded |
|---|
| Shell Material, Finish | Steel, Nickel Plated |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | Flash |
|---|
| Ingress Protection | - |
|---|
| Operating Temperature | -55°C ~ 105°C |
|---|
| Voltage Rating | 30V |
|---|
| Current Rating | 1A |
|---|
| Housing Material | Polyphthalamide (PPA) |
|---|
| Color | Black |
|---|
| Mating Products | A31787-ND - CONN D-TYPE PLUG 68POS STR IDCA31795-ND - CONN D-TYPE PLUG 68POS STR IDCA31789-ND - CONN D-TYPE PLUG 68POS STR IDCA31786-ND - CONN D-TYPE PLUG 68POS STR IDC |
|---|
| Other Names | 786555-7-ND7865557A23743 |
|---|
