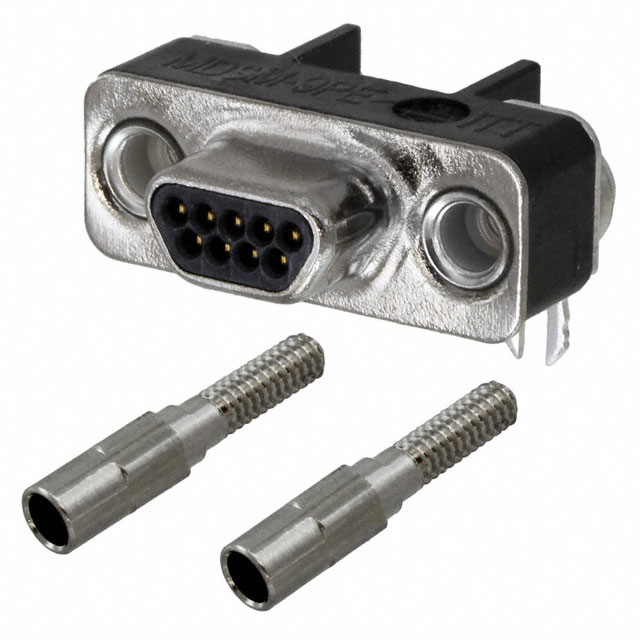

| Part Number | MDSM-9PE-Z10-VR25 |
|---|
| Manufacturer | ITT Cannon |
|---|
| Description | CONN DSUB PLUG 9 POS R/A CRIMP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | MDSM |
|---|
| Family | D-Sub Connectors |
|---|
| Standard Package | 25 |
|---|
| Packaging | Bulk |
|---|
| Connector Style | D-Type, Micro-D |
|---|
| Connector Type | Plug, Male Pins |
|---|
| Number of Positions | 9 |
|---|
| Number of Rows | 2 |
|---|
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row |
|---|
| Contact Type | Signal |
|---|
| Mounting Type | Through Hole, Right Angle |
|---|
| Flange Feature | Mating Side; Female Screwlock (2-56) |
|---|
| Termination | Solder |
|---|
| Features | Board Lock, Shielded |
|---|
| Shell Material, Finish | Steel, Nickel Plated |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | Flash |
|---|
| Ingress Protection | - |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Voltage Rating | - |
|---|
| Current Rating | 2.5A |
|---|
| Housing Material | Thermoplastic |
|---|
| Color | - |
|---|
| Other Names | 1216611039IMDSM-9PE-Z10-VR25IMDSM-9PE-Z10-VR25-NDMDSM9PEZ10VR25-ND |
|---|
