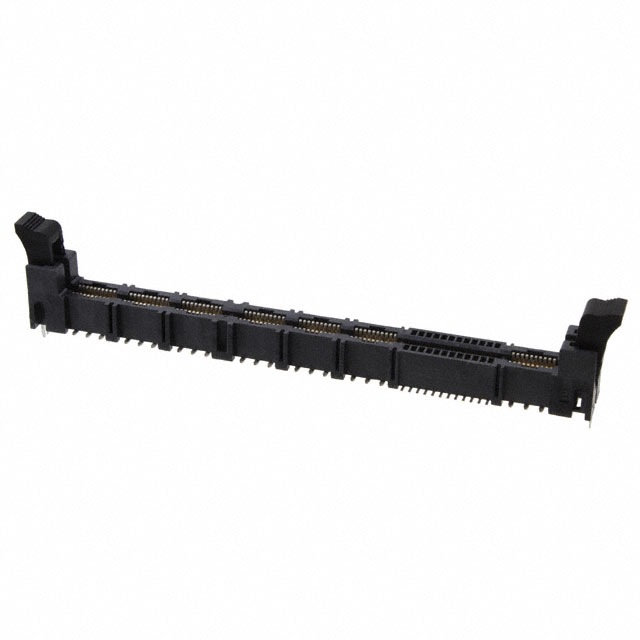

| Part Number | 1766735-2 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN SOCKET W/LATCH SMT |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Card Edge Connectors - Edgeboard Connectors |
|---|
| 3D Model |
1766735-2.pdf
|
|---|
| Standard Package | 26 |
|---|
| Packaging | Tray |
|---|
| Card Type | Non Specified - Dual Edge |
|---|
| Gender | Female |
|---|
| Number of Positions/Bay/Row | - |
|---|
| Number of Positions | 38 (24 + 14 Power) |
|---|
| Card Thickness | 0.062" (1.57mm) |
|---|
| Number of Rows | 2 |
|---|
| Pitch | - |
|---|
| Features | Board Lock, Latches |
|---|
| Mounting Type | Surface Mount |
|---|
| Termination | Solder |
|---|
| Contact Material | Copper Alloy |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 30μin (0.76μm) |
|---|
| Contact Type | - |
|---|
| Color | Black |
|---|
| Flange Feature | - |
|---|
| Operating Temperature | -55°C ~ 105°C |
|---|
| Material - Insulation | Thermoplastic |
|---|
| Read Out | Dual |
|---|
| Other Names | A107794 |
|---|
