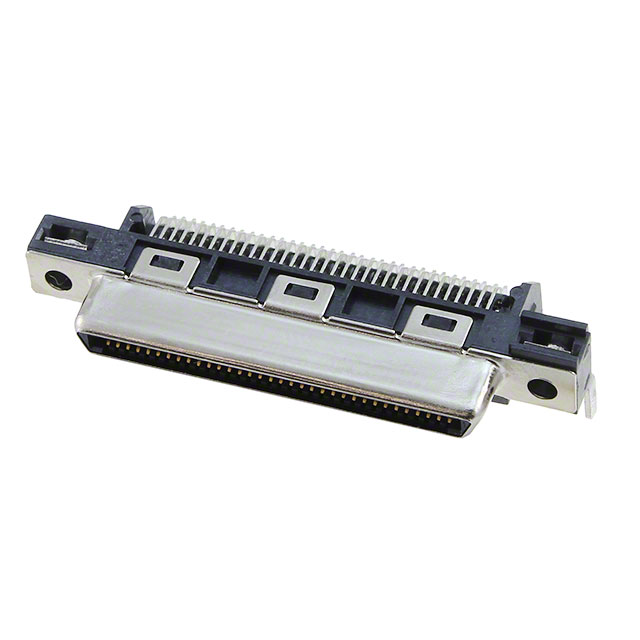

| Part Number | 796055-2 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN RCPT 68POS .8MM R/A |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | CHAMP .031 |
|---|
| Family | D-Shaped Connectors - Centronics |
|---|
| 3D Model |
796055-2.pdf
|
|---|
| Standard Package | 320 |
|---|
| Connector Style | Outer Shroud Contacts |
|---|
| Connector Type | Receptacle |
|---|
| Number of Positions | 68 |
|---|
| Number of Rows | 2 |
|---|
| Mounting Type | Panel Mount, Through Hole, Right Angle |
|---|
| Termination | Solder |
|---|
| Flange Feature | Insert, Threaded (M2) |
|---|
| Type | - |
|---|
| Features | Board Lock, Shielded |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 30μin (0.76μm) |
|---|
| Mating Products | A114030-ND - CONN PLUG 68POS .8MM 30GOLD787131-3-ND - CONN PLUG 68POS .8MM 30GOLD |
|---|
| Other Names | 796055-2-NDA114489 |
|---|
