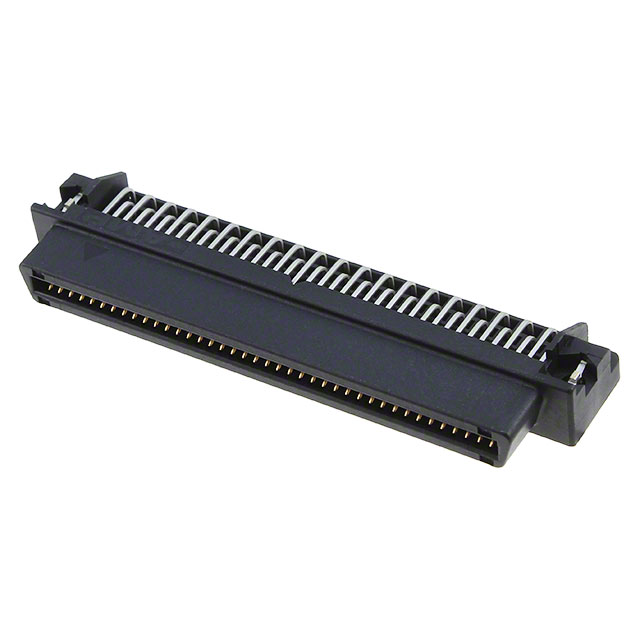

| Part Number | 5175474-9 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN CHAMP RCPT 80POS .050 R/A |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | CHAMP .050 I |
|---|
| Family | D-Shaped Connectors - Centronics |
|---|
| 3D Model |
5175474-9.pdf
5175474-9.igs
5175474-9.stp
|
|---|
| Standard Package | 70 |
|---|
| Connector Style | Outer Shroud Contacts |
|---|
| Connector Type | Receptacle |
|---|
| Number of Positions | 80 |
|---|
| Number of Rows | 2 |
|---|
| Mounting Type | Through Hole, Right Angle |
|---|
| Termination | Solder |
|---|
| Flange Feature | - |
|---|
| Type | Board to Board, High Density |
|---|
| Features | Board Lock |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 8μin (0.20μm) |
|---|
| Mating Products | A33457-ND - .050CL,CHAMP,VERT PLUG,80 POSN5-5175472-9-ND - CONN CHAMP PLUG 80POS .050 R/A5-5917593-9-ND - CONN PLUG 80POS .050 R/A5-917593-9-ND - CONN PLUG 80POS .050 R/A |
|---|
