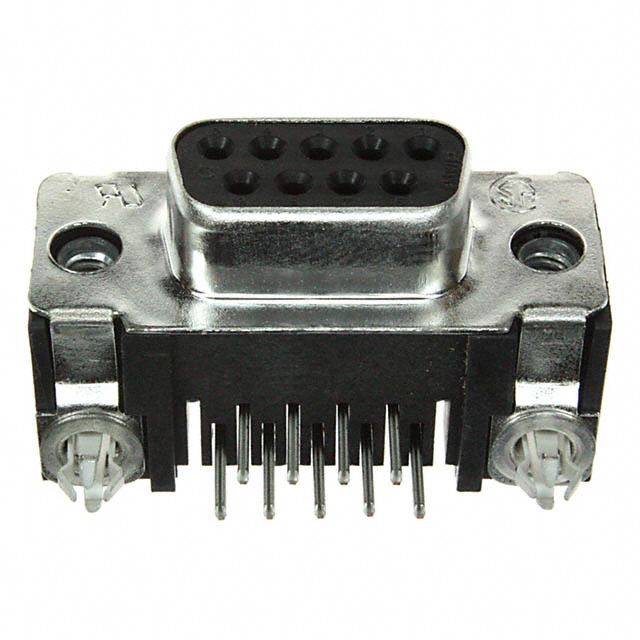

| Part Number | 5788796-3 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN D-SUB RCPT 9POS R/A SOLDER |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | AMPLIMITE HD-20 |
|---|
| Family | D-Sub Connectors |
|---|
| Product Training Modules |
AMPLIMITE D-Sub Connectors
|
|---|
| Featured Product |
AMPLIMITE D-Subminiature Connectors
|
|---|
| 3D Model |
5788796-3.pdf
|
|---|
| Standard Package | 17 |
|---|
| Packaging | Tube |
|---|
| Connector Style | D-Sub |
|---|
| Connector Type | Receptacle, Female Sockets |
|---|
| Number of Positions | 9 |
|---|
| Number of Rows | 2 |
|---|
| Shell Size, Connector Layout | 1 (DE, E) |
|---|
| Contact Type | Signal |
|---|
| Mounting Type | Through Hole, Right Angle |
|---|
| Flange Feature | Housing/Shell (4-40) |
|---|
| Termination | Solder |
|---|
| Features | Board Lock |
|---|
| Shell Material, Finish | Steel, Tin Plated |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 30μin (0.76μm) |
|---|
| Ingress Protection | - |
|---|
| Operating Temperature | -55°C ~ 105°C |
|---|
| Voltage Rating | 125V |
|---|
| Current Rating | 6A |
|---|
| Housing Material | Polyamide (PA), Nylon |
|---|
| Color | Black |
|---|
| Online Catalog | AMPLIMITE HD-20 Series |
|---|
| Mating Products | 5-747904-5-ND - CONN DSUB PLUG 9POS STR SLDR CUPA32507-ND - CONN DSUB PLUG 9POS STR SLDR CUPA31930-ND - CONN DSUB PLUG 9POS STR IDCAMR09B-ND - CONN DSUB PLUG 9POS STR IDCAML09B-ND - CONN DSUB PLUG 9POS STR IDCA31966-ND - CONN DSUB PLUG 9POS STR IDCA101880-ND - CONN DSUB PLUG 9POS STR SLDR CUPA31929-ND - CONN DSUB PLUG 9POS STR IDCA31965-ND - CONN DSUB PLUG 9POS STR IDCA122901-ND - CONN DSUB PLUG 9POS STR CRIMPA114024-ND - CONN DSUB PLUG 9POS STR SLDR CUPA106369-ND - CONN DSUB PLUG 9POS STR IDC |
|---|
| Other Names | 57887963A35135 |
|---|
