| Part Number | 0836119006 |
|---|
| Manufacturer | Molex, LLC |
|---|

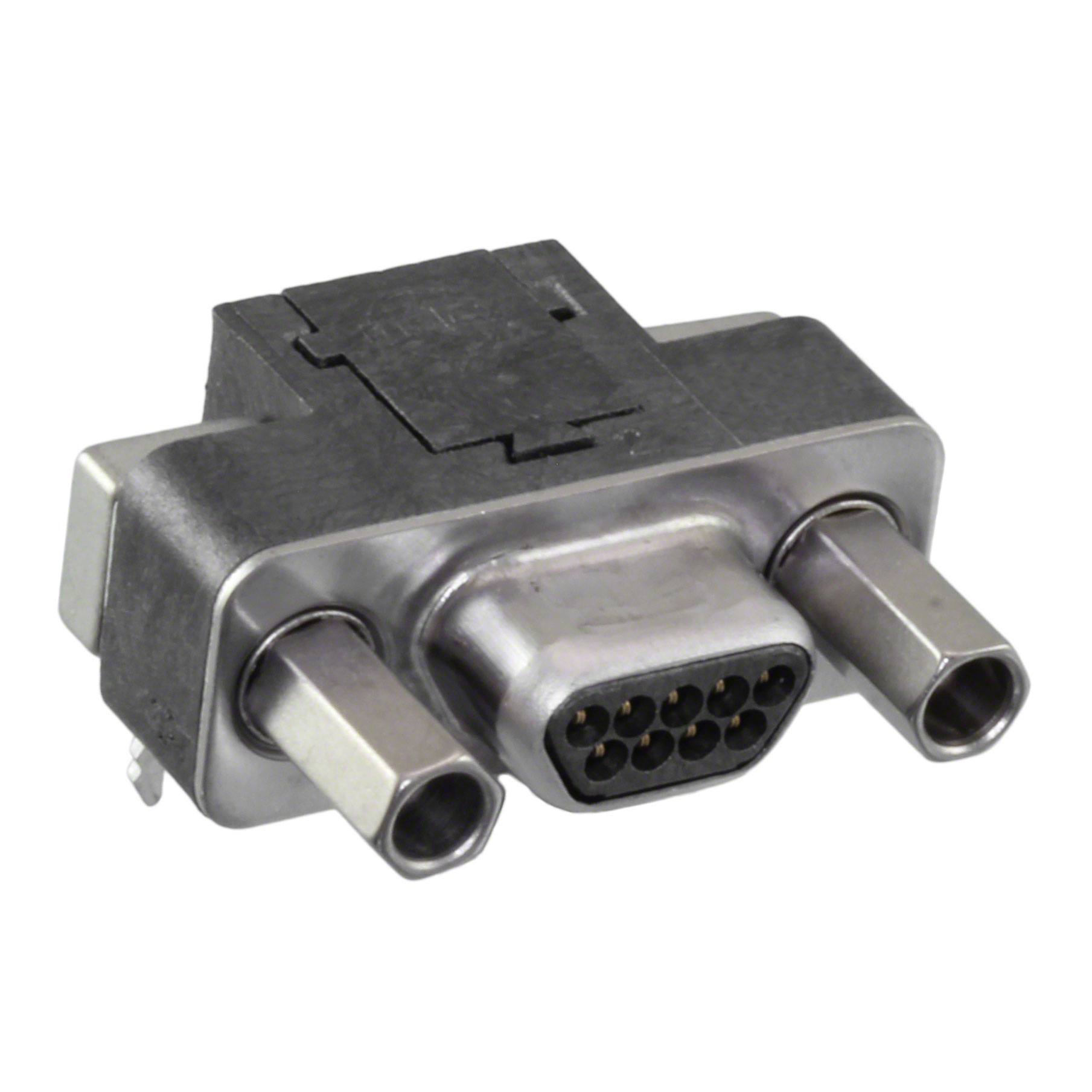

| Description | CONN MICRO-D PLUG 9POS R/A SLDR |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Commercial Micro-D Series 83611 |
|---|
| Family | D-Sub Connectors |
|---|
| 3D Model |
83611-9006.stp
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Tube |
|---|
| Connector Style | D-Type, Micro-D |
|---|
| Connector Type | Plug, Male Pins |
|---|
| Number of Positions | 9 |
|---|
| Number of Rows | 2 |
|---|
| Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row |
|---|
| Contact Type | Signal |
|---|
| Mounting Type | Panel Mount, Through Hole, Right Angle |
|---|
| Flange Feature | Mating Side; Female Screwlock (2-56) |
|---|
| Termination | Solder |
|---|
| Features | Board Lock, Shielded |
|---|
| Shell Material, Finish | Steel, Nickel Plated |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 15μin (0.38μm) |
|---|
| Ingress Protection | - |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|
| Voltage Rating | - |
|---|
| Current Rating | 1A |
|---|
| Housing Material | Liquid Crystal Polymer (LCP) |
|---|
| Color | - |
|---|
| Online Catalog | Commercial Micro-D Series |
|---|
| Mating Products | WM3566-ND - CMD RECPT KIT 9CIR UNASSEMBLED |
|---|
| Other Names | 083611-9006083611-9006-E0836119006-E83611-900683611-9006-E83611-9006-ND836119006836119006-EQ2585221SD-83611-001WM2142 |
|---|
