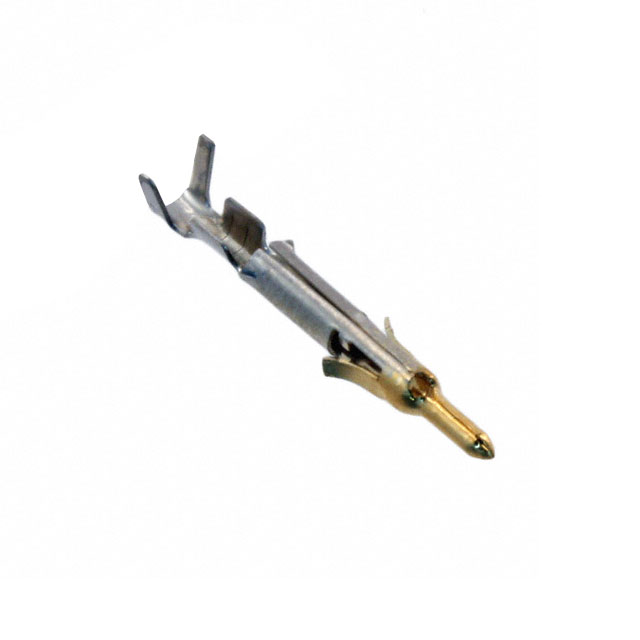

| Part Number | 170359-3 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN PIN 22-26AWG M-U MNL GOLD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Mini-Universal MATE-N-LOK |
|---|
| Family | Contacts - Multi Purpose |
|---|
| 3D Model |
170359-3.pdf
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Type | Stamped |
|---|
| Pin or Socket | Pin |
|---|
| Contact Termination | Crimp |
|---|
| Wire Gauge | 22-26 AWG |
|---|
| Material | Brass |
|---|
| Plating | Gold |
|---|
| Plating - Thickness | 30μin (0.76μm) |
|---|
| Online Catalog | Mini-Universal MATE-N-LOK Series |
|---|
| For Use With | A97683-ND - CONN PLUG 2POS MINI-U MATE-N-LOKA25587-ND - CONN PLUG 2POS MINI UNIV-MATEA25652-ND - CONN CAP 2POS MINI UNIV-MATEA25571-ND - CONN PLUG 4POS MINI UNIV-MATEA25653-ND - CONN CAP 3POS MINI UNIV-MATEA25588-ND - CONN PLUG 3POS MINI UNIV-MATEA25572-ND - CONN CAP 4POS MINI UNIV-MATEA97680-ND - CONN PLUG 1POS MINI-U MATE-N-LA106580-ND - CONN PLUG HOUSE 4POS MATE-N-LOKA97679-ND - CONN RCPT/CAP 1POS MINI-U M-N-LA25698-ND - CONN CAP 3POS MINI UNIV-MATEA106198-ND - CONN PLUG 3POS MINI-U MNL NATA97681-ND - CONN RCPT/CAP 2POS MINI-U M-N-LA97684-ND - CONN RCPT/CAP 2POS MINI-U M-N-LA97674-ND - CONN PLUG 6POS MINI-U MATE-N-LA97682-ND - CONN RCPT/CAP 6POS MINI-U M-N-LA25703-ND - CONN PLUG 12POS MINI UNIV-MATEA25573-ND - CONN PLUG 6POS MINI UNIV-MATEA25699-ND - CONN CAP 9POS MINI UNIV-MATEA25702-ND - CONN PLUG 9POS MINI UNIV-MATEA97673-ND - CONN PLUG 1POS MINI-U MATE-N-LA97672-ND - CONN RCPT/CAP 1POS MINI-U MNLA106890-ND - CONN RCPT/CAP 3POS MINI-MATE-N-LA106637-ND - CONN PLUG 12POS MINI-MATE-N-LOKA112668-ND - CONN PLUG 9POS MINI-MATE-N-LOKA122289-ND - CONN PLUG 4POS MINI UNIV-MNL BLKA122288-ND - CONN PLUG HOUSING 4POS .163"A111950-ND - CONN PLUG 2POS MINI UNIV-MNL BLKA122287-ND - CONN CAP RCPT 4POS MINI-UMNL BLKA122286-ND - CONN CAP RCPT 4POS MINI-UMNL REDA122290-ND - CONN HOUSING PLUG 6POS DUAL REDA25700-ND - CONN CAP 12POS MINI UNIV-MATEA25701-ND - CONN CAP 15POS MINI UNIV-MATEA112663-ND - CONN RECEPT/CAP 3POS MATE-N-LOKA112664-ND - CONN RECEPT/CAP 4POS MATE-N-LOKA112667-ND - CONN CAP 15PS MINI-U-MNL NATA112666-ND - CONN RCPT/CAP 12POS MINI-UMNLA111949-ND - CONN PLUG HOUSING 2POS .163"A111948-ND - CONN CAP RCPT 2POS MINI-UM-N-L1-172161-9-ND - CONN CAP 9POS MINI-U-MNL BLACKA25574-ND - CONN CAP 6POS MINI UNIV-MATEA25704-ND - CONN PLUG 15POS MINI UNIV-MATEA112665-ND - CONN CAP 9POS MINI-U-MNL NATA112669-ND - CONN PLUG 15POS MINI-U MNL NATA25697-ND - CONN CAP 2POS MINI UNIV-MATE1-172327-2-ND - CONN CAP 1POS MINI-U-MNL RED1-172156-2-ND - CONN CAP 1POS MINI-U-MNL RED |
|---|
| Tooling | A25695-ND - EXTRACTION TOOLA1444-ND - TOOL INSERTIONF UNI-MATE-II |
|---|
| Other Names | A97675CT |
|---|
