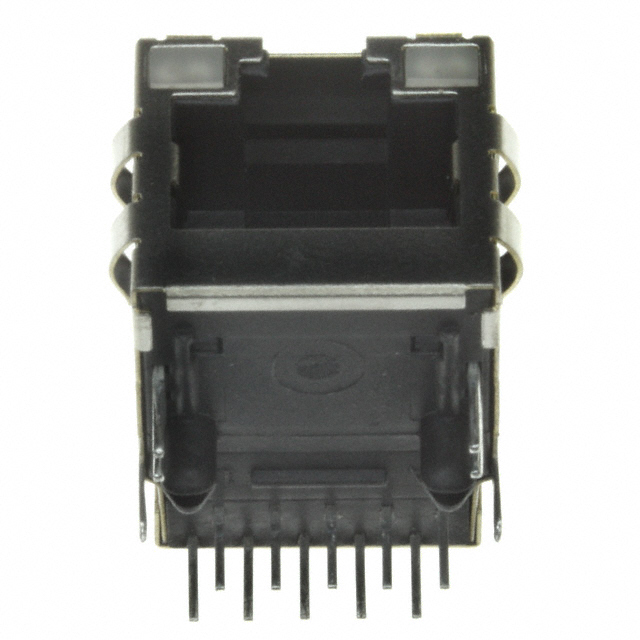

| Part Number | 6605814-6 |
|---|
| Manufacturer | TRP Connector B.V. |
|---|
| Description | CONN MAGJACK 1PORT 1000 BASE-T |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Mag45 |
|---|
| Family | Modular Connectors - Jacks With Magnetics |
|---|
| Product Training Modules |
Integrated Connector Module
|
|---|
| Featured Product |
Ethernet Connectivity
|
|---|
| PCN Manufacturer Information |
TRP Connector Acquistion 22/Mar/2013
|
|---|
| Standard Package | 315 |
|---|
| Packaging | Tray |
|---|
| Connector Type | RJ45 |
|---|
| Number of Ports | 1 |
|---|
| Number of Rows | 1 |
|---|
| Applications | 10/100/1000 Base-T, AutoMDIX |
|---|
| Mounting Type | Through Hole |
|---|
| Orientation | 90° Angle (Right) |
|---|
| Termination | Solder |
|---|
| Height Above Board | 0.555" (14.10mm) |
|---|
| LED Color | Green, Yellow - Green, Yellow |
|---|
| Number of Cores per Jack | 12 |
|---|
| Shielding | Shielded, EMI Finger |
|---|
| Features | Board Lock |
|---|
| Tab Direction | Up |
|---|
| Contact Material | Phosphor Bronze |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 50μin (1.27μm) |
|---|
| Shield Material | Brass |
|---|
| Housing Material | Polyethylene Terephthalate (PET), Polyester |
|---|
| Operating Temperature | 0°C ~ 70°C |
|---|
| Online Catalog | Mag45 Series |
|---|
| Other Names | 1419-10156605814-6-NDA99641A99641-ND |
|---|
