| Part Number | AXK730147G |
|---|
| Manufacturer | Panasonic Electric Works |
|---|

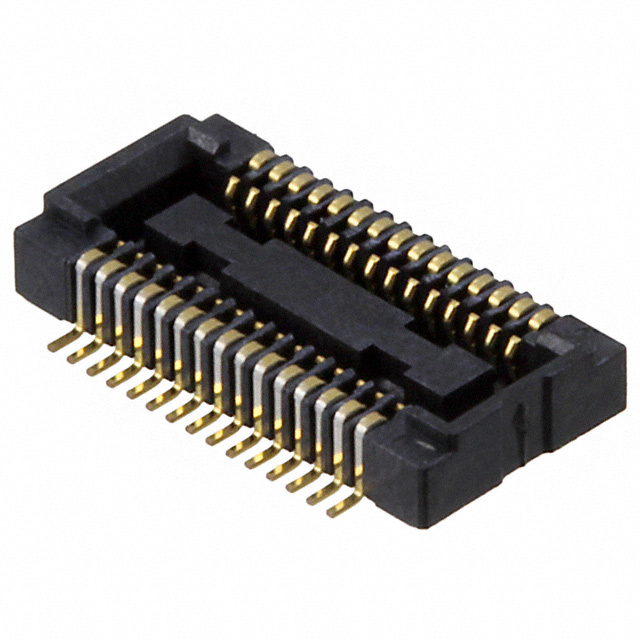

| Description | CONN SOCKET BRD/BRD .4MM 30POS |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | P4 |
|---|
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
|---|
| Other Related Documents |
Connectors SMD-Technical Info
How to Read Date Codes
|
|---|
| Product Training Modules |
Tough Contact Connectors
|
|---|
| Featured Product |
Tough Contact Connector Series
Hot New Technologies
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Connector Type | Socket, Center Strip Contacts |
|---|
| Number of Positions | 30 |
|---|
| Pitch | 0.016" (0.40mm) |
|---|
| Number of Rows | 2 |
|---|
| Mounting Type | Surface Mount |
|---|
| Features | - |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | - |
|---|
| Mated Stacking Heights | 1.5mm |
|---|
| Height Above Board | 0.059" (1.50mm) |
|---|
| Online Catalog | P4 Series |
|---|
| Mating Products | 255-3278-2-ND - CONN HEADER FPC .4MM 30POS SMD255-3278-1-ND - CONN HEADER FPC .4MM 30POS SMDAXK830245WG-ND - CONN HEADER FPC .4MM 30POS SMDAXK830135WG-ND - CONN HEADER FPC .4MM 30POS SMDAXK830115WG-ND - CONN HEADER FPC .4MM 30POS SMDAXK830125WG-ND - CONN HEADER FPC .4MM 30POS SMDAXK830225WG-ND - CON |
|---|
| Other Names | 255-4203-1 |
|---|
