| Part Number | AXT440124 |
|---|
| Manufacturer | Panasonic Electric Works |
|---|

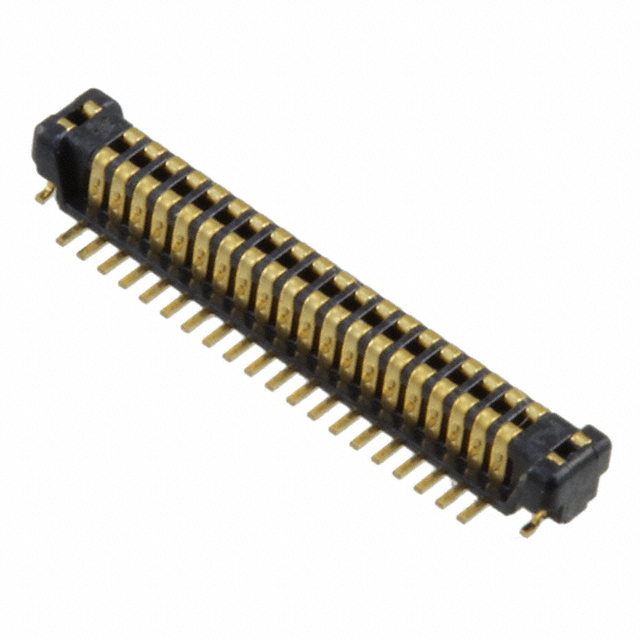

| Description | CONN HEADER FPC .4MM 40POS SMD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | P4S |
|---|
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
|---|
| Other Related Documents |
Connectors SMD-Technical Info
How to Read Date Codes
|
|---|
| Product Training Modules |
Tough Contact Connectors
|
|---|
| Featured Product |
Tough Contact Connector Series
Hot New Technologies
|
|---|
| PCN Obsolescence/ EOL |
F4S(18,38,46) Jan/2013
P4S(28,42,56,120) Jan/2013
|
|---|
| Standard Package | 1,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Connector Type | Header, Center Strip Contacts |
|---|
| Number of Positions | 40 |
|---|
| Pitch | 0.016" (0.40mm) |
|---|
| Number of Rows | 2 |
|---|
| Mounting Type | Surface Mount |
|---|
| Features | Solder Retention |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | - |
|---|
| Mated Stacking Heights | 1.5mm, 2.5mm |
|---|
| Height Above Board | 0.049" (1.25mm) |
|---|
| Mating Products | AXT340224TR-ND - CONN SOCKET .4MM 40POS SMDAXT340224CT-ND - CONN SOCKET .4MM 40POS SMDAXT340224DKR-ND - CONN SOCKET .4MM 40POS SMD255-3301-2-ND - CONN SOCKET FPC .4MM 40POS SMD255-3301-1-ND - CONN SOCKET FPC .4MM 40POS SMDAXT340154-ND - CONN SOCKET .4MM 40POS SMDAXT340164-ND - CONN SOCKET .4MM 40POS |
|---|
| Other Names | 255-3312-2AXT440124-ND |
|---|
