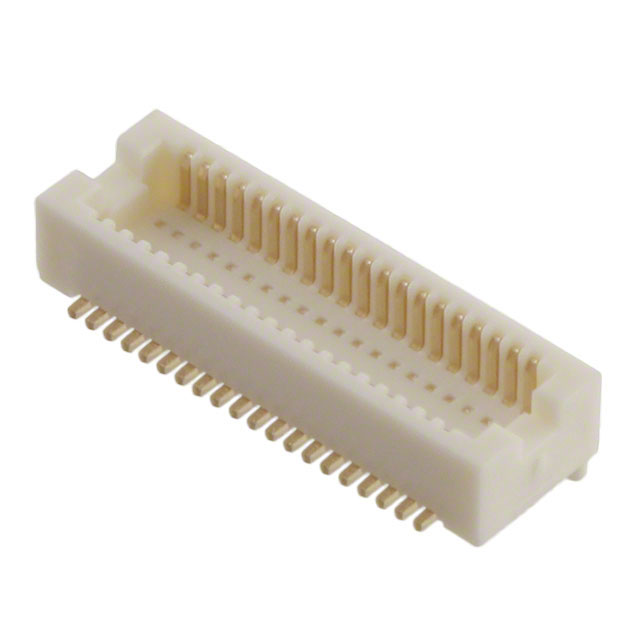

| Part Number | DF12(4.0)-40DP-0.5V(86) |
|---|
| Manufacturer | Hirose Electric Co Ltd |
|---|
| Description | CONN HEADER 40POS 4MM SMD 0.5MM |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | DF12 |
|---|
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
|---|
| Product Training Modules |
Board to Board and Board to FPC Connectors
|
|---|
| Featured Product |
DF12 Series
|
|---|
| Standard Package | 1,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Connector Type | Header, Outer Shroud Contacts |
|---|
| Number of Positions | 40 |
|---|
| Pitch | 0.020" (0.50mm) |
|---|
| Number of Rows | 2 |
|---|
| Mounting Type | Surface Mount |
|---|
| Features | Board Guide, Solder Retention |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 8μin (0.20μm) |
|---|
| Mated Stacking Heights | 4mm |
|---|
| Height Above Board | 0.130" (3.30mm) |
|---|
| Online Catalog | DF12 Series |
|---|
| Mating Products | H5217TR-ND - CONN RECEPT 40POS 0.5MM GOLD SMDH5217CT-ND - CONN RECEPT 40POS 0.5MM GOLD SMDH5217DKR-ND - CONN RECEPT 40POS 0.5MM GOLD SMDH11706TR-ND - CONN RECEPT 40POS 3MM SMD 0.5MMH11706CT-ND - CONN RECEPT 40POS 3MM SMD 0.5MMH11706DKR-ND - CONN RECEPT 40POS 3MM SMD 0.5MMH5212TR-ND - CONN RECEPT 40P |
|---|
| Other Names | DF124040DP05V86H5240TR |
|---|
