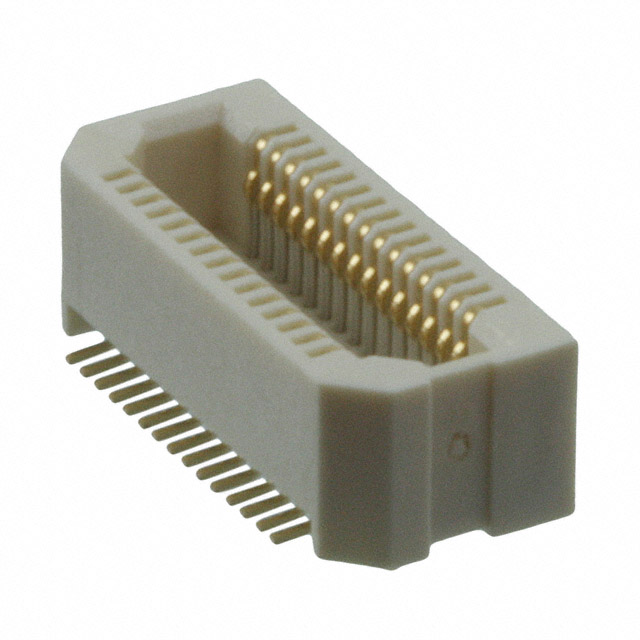

| Part Number | AXK5S30247YG |
|---|
| Manufacturer | Panasonic Electric Works |
|---|
| Description | CONN SOCKET BRD/BRD .5MM 30POS |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | P5KS |
|---|
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
|---|
| Other Related Documents |
Connectors SMD-Technical Info
How to Read Date Codes
|
|---|
| Featured Product |
Hot New Technologies
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Connector Type | Socket, Center Strip Contacts |
|---|
| Number of Positions | 30 |
|---|
| Pitch | 0.020" (0.50mm) |
|---|
| Number of Rows | 2 |
|---|
| Mounting Type | Surface Mount |
|---|
| Features | - |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | - |
|---|
| Mated Stacking Heights | 4.5mm, 5.5mm, 6.5mm |
|---|
| Height Above Board | 0.140" (3.55mm) |
|---|
| Online Catalog | P5K and P5KS Series |
|---|
| Mating Products | 255-2545-2-ND - CONN HEADER P5KS .5MM 30POS SMD255-2545-1-ND - CONN HEADER P5KS .5MM 30POS SMD255-2545-6-ND - CONN HEADER P5KS .5MM 30POS SMD255-2547-2-ND - CONN HEADER P5KS .5MM 30POS SMD255-2547-1-ND - CONN HEADER P5KS .5MM 30POS SMD255-2547-6-ND - CONN HEADER P5KS .5MM 30POS SMD255-2546-2-ND - CO |
|---|
| Other Names | 255-3234-1 |
|---|
