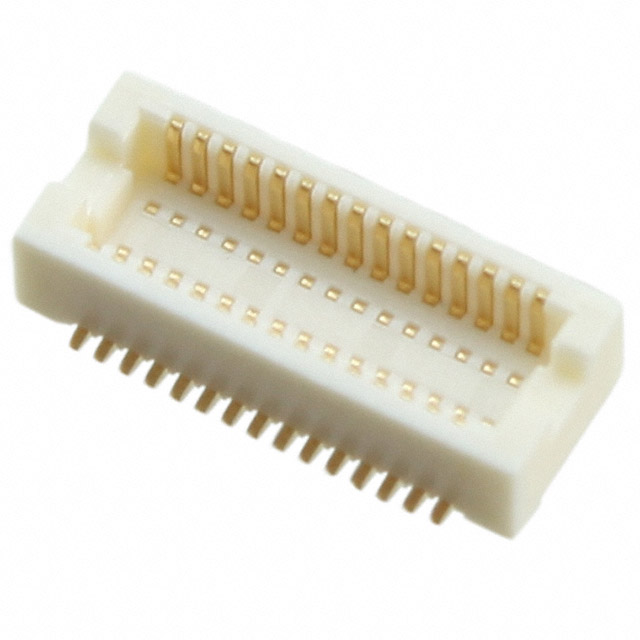

| Part Number | DF12(4.0)-30DP-0.5V(86) |
|---|
| Manufacturer | Hirose Electric Co Ltd |
|---|
| Description | CONN HEADER 30POS 4MM SMD 0.5MM |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | DF12 |
|---|
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
|---|
| Product Training Modules |
Board to Board and Board to FPC Connectors
|
|---|
| Featured Product |
DF12 Series
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Connector Type | Header, Outer Shroud Contacts |
|---|
| Number of Positions | 30 |
|---|
| Pitch | 0.020" (0.50mm) |
|---|
| Number of Rows | 2 |
|---|
| Mounting Type | Surface Mount |
|---|
| Features | Board Guide, Solder Retention |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 8μin (0.20μm) |
|---|
| Mated Stacking Heights | 4mm |
|---|
| Height Above Board | 0.130" (3.30mm) |
|---|
| Online Catalog | DF12 Series |
|---|
| Mating Products | H5215TR-ND - CONN RECEPT 30POS 0.5MM GOLD SMDH5215CT-ND - CONN RECEPT 30POS 0.5MM GOLD SMDH5215DKR-ND - CONN RECEPT 30POS 0.5MM GOLD SMDH11704TR-ND - CONN RECEPT 30POS 3MM SMD 0.5MMH11704CT-ND - CONN RECEPT 30POS 3MM SMD 0.5MMH11704DKR-ND - CONN RECEPT 30POS 3MM SMD 0.5MMH11754TR-ND - CONN RECEPT 30 |
|---|
| Other Names | *DF12(4.0)-30DP-0.5V(86)H5238CT |
|---|
