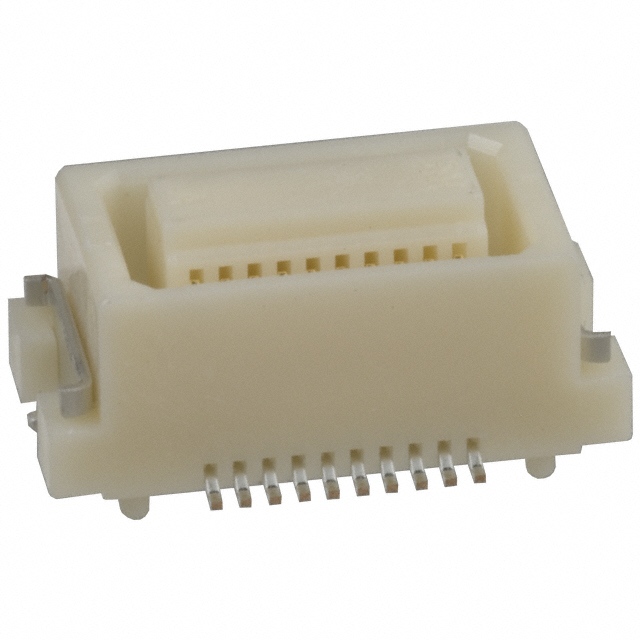

| Part Number | DF17(4.0)-20DS-0.5V(57) |
|---|
| Manufacturer | Hirose Electric Co Ltd |
|---|
| Description | CONN RECEPT 20POS .5MM SMD W/FIT |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | DF17 |
|---|
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
|---|
| Product Training Modules |
Board to Board and Board to FPC Connectors
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Connector Type | Receptacle, Center Strip Contacts |
|---|
| Number of Positions | 20 |
|---|
| Pitch | 0.020" (0.50mm) |
|---|
| Number of Rows | 2 |
|---|
| Mounting Type | Surface Mount |
|---|
| Features | Board Guide, Solder Retention |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | - |
|---|
| Mated Stacking Heights | 6mm, 6.5mm, 8mm |
|---|
| Height Above Board | 0.177" (4.50mm) |
|---|
| Online Catalog | DF17 Series |
|---|
| Mating Products | H11128TR-ND - CONN HEADER 20POS .5MM SMD W/FITH11128CT-ND - CONN HEADER 20POS .5MM SMD W/FITH11128DKR-ND - CONN HEADER 20POS .5MM SMD W/FITH11142TR-ND - CONN HEADER 20POS .5MM SMD W/FITH11142CT-ND - CONN HEADER 20POS .5MM SMD W/FITH11142DKR-ND - CONN HEADER 20POS .5MM SMD W/FITH11135TR-ND - CONN HEADER 20POS .5MM SMD GOLDH11135CT-ND - CONN HEADER 20POS .5MM SMD GOLDH11135DKR-ND - CONN HEADER 20POS .5MM SMD GOLDDF17B(2.0)-20DP-0.5V(57)-ND - CONN HDR 20POS .5MM SMD GOLDH11149TR-ND - CONN HEADER 20POS .5MM SMD GOLDH11149CT-ND - CONN HEADER 20POS .5MM SMD GOLDH11149DKR-ND - CONN HEADER 20POS .5MM SMD GOLDDF17B(4.0)-20DP-0.5V(57)-ND - CONN HDR 20POS .5MM SMD GOLDH2380TR-ND - CONN HEADER 20POS .5MM SMD GOLDH2380CT-ND - CONN HEADER 20POS .5MM SMD GOLDH2387TR-ND - CONN HEADER 20POS .5MM SMD GOLDH2387CT-ND - CONN HEADER 20POS .5MM SMD GOLDH2394TR-ND - CONN HEADER 20POS .5MM SMD W/FITH2394CT-ND - CONN HEADER 20POS .5MM SMD W/FITH2401TR-ND - CONN HEADER 20POS .5MM SMD W/FITH2401CT-ND - CONN HEADER 20POS .5MM SMD W/FIT |
|---|
| Other Names | H11114DKR |
|---|
