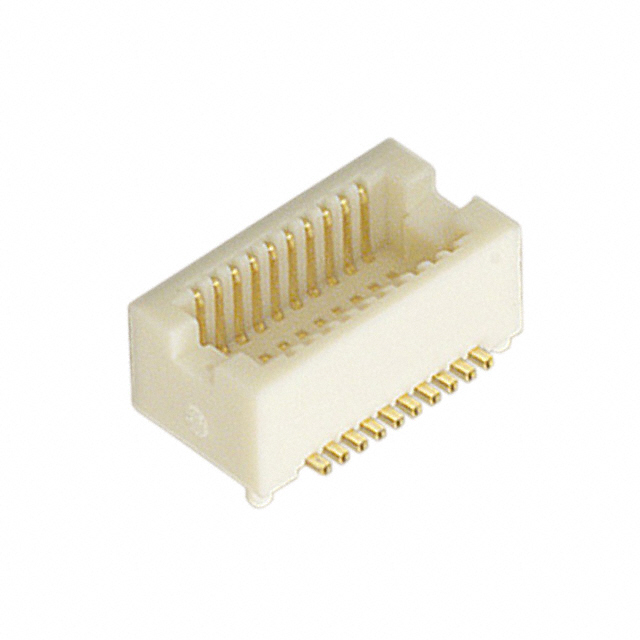

| Part Number | DF12D(3.5)-20DP-0.5V(81) |
|---|
| Manufacturer | Hirose Electric Co Ltd |
|---|
| Description | CONN HEADER 20POS 3.5MM SMD .5MM |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | DF12 |
|---|
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
|---|
| Product Training Modules |
Board to Board and Board to FPC Connectors
|
|---|
| Featured Product |
DF12 Series
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Connector Type | Header, Outer Shroud Contacts |
|---|
| Number of Positions | 20 |
|---|
| Pitch | 0.020" (0.50mm) |
|---|
| Number of Rows | 2 |
|---|
| Mounting Type | Surface Mount |
|---|
| Features | Board Guide |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | - |
|---|
| Mated Stacking Heights | 3.5mm |
|---|
| Height Above Board | 0.110" (2.80mm) |
|---|
| Online Catalog | DF12 Series |
|---|
| Mating Products | H5214TR-ND - CONN RECEPT 20POS 0.5MM GOLD SMDH5214CT-ND - CONN RECEPT 20POS 0.5MM GOLD SMDH5214DKR-ND - CONN RECEPT 20POS 0.5MM GOLD SMDH5209TR-ND - CONN RECEPT 20POS 0.5MM GOLD SMDH5209CT-ND - CONN RECEPT 20POS 0.5MM GOLD SMDH5209DKR-ND - CONN RECEPT 20POS 0.5MM GOLD SMDH11732TR-ND - CONN RECEPT 20 |
|---|
| Other Names | H5226DKR |
|---|
