| Part Number | 5024262610 |
|---|
| Manufacturer | Molex, LLC |
|---|

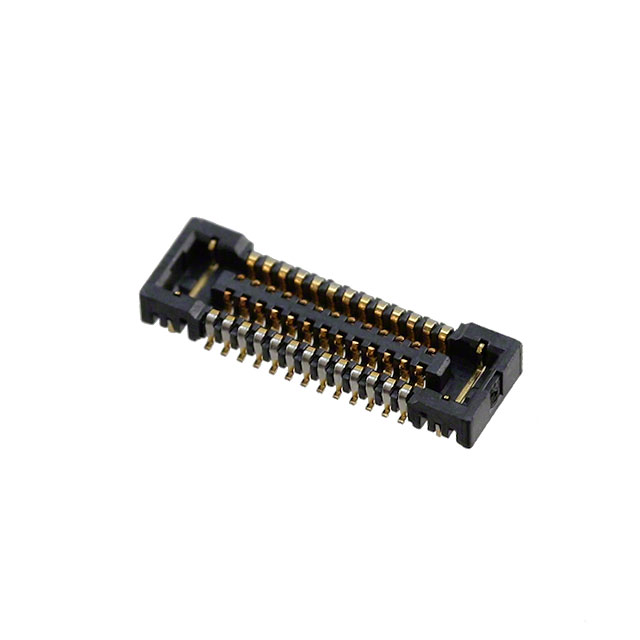

| Description | CONN RCPT 26POS VERT DUAL SMD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | SlimStack? 502426 |
|---|
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
|---|
| Video File |
Microminiature Connectors
Mezzanine SlimStack
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Connector Type | Receptacle, Center Strip Contacts |
|---|
| Number of Positions | 26 |
|---|
| Pitch | 0.016" (0.40mm) |
|---|
| Number of Rows | 2 |
|---|
| Mounting Type | Surface Mount |
|---|
| Features | Solder Retention |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 3.9μin (0.10μm) |
|---|
| Mated Stacking Heights | 1mm |
|---|
| Height Above Board | 0.039" (1.00mm) |
|---|
| Online Catalog | SlimStack? Series |
|---|
| Mating Products | WM24079-ND - CONN PLUG 26POS VERT DUAL SMD |
|---|
| Other Names | WM24071WM24071-NDWM24071CT |
|---|
