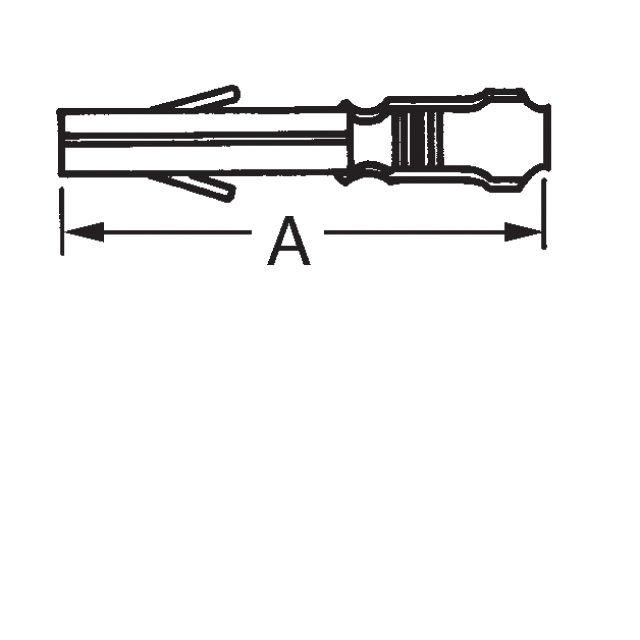

| Part Number | 350536-1 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN SOCKET 20-14AWG TIN UMNL |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Universal MATE-N-LOK |
|---|
| Family | Rectangular Connectors - Contacts |
|---|
| 3D Model |
350536-1.pdf
|
|---|
| PCN Design/Specification |
Multiple Devices Drawing 29/Sep/2015
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Type | - |
|---|
| Pin or Socket | Socket |
|---|
| Contact Termination | Crimp |
|---|
| Wire Gauge | 14-20 AWG |
|---|
| Contact Finish | Tin |
|---|
| Contact Finish Thickness | - |
|---|
| Online Catalog | Universal MATE-N-LOK |
|---|
| For Use With | A1449-ND - CONN CAP 2POS 94V-2 UNI-MATEA1452-ND - CONN PLUG 4POS 94V-2 UNI-MATEA1451-ND - CONN CAP 3POS 94V-2 UNI-MATEA1450-ND - CONN PLUG 3POS 94V-2 UNI-MATEA1448-ND - CONN PLUG 2POS 94V-2 UNI-MATEA1457-ND - CONN CAP 6POS 94V-2 UNI-MATEA1456-ND - CONN PLUG 6POS 94V-2 UNI-MATEA14280-ND - CONN PLUG 3 |
|---|
| Tooling | A32539-ND - TOOL EXTRACTION UNI-MATE-IIA1444-ND - TOOL INSERTIONF UNI-MATE-II354500-1-ND - TOOL TERMINATION MACHINE MOD "G"687763-6-ND - SIDE FEED HDM APPLICATOR |
|---|
| Other Names | A97889CT |
|---|
