| Part Number | 5035480620 |
|---|
| Manufacturer | Molex, LLC |
|---|

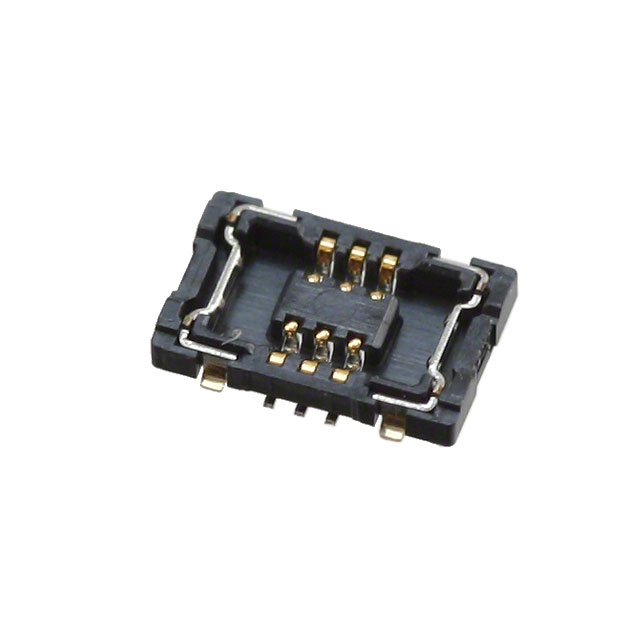

| Description | CONN RCPT BTB 6POS DUAL VERT SMD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | SlimStack? 503548 |
|---|
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
|---|
| 3D Model |
503548-0620.stp
503548-0620 .pdf
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Connector Type | Receptacle, Center Strip Contacts |
|---|
| Number of Positions | 6 |
|---|
| Pitch | 0.016" (0.40mm) |
|---|
| Number of Rows | 2 |
|---|
| Mounting Type | Surface Mount |
|---|
| Features | Solder Retention |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | - |
|---|
| Mated Stacking Heights | 0.7mm |
|---|
| Height Above Board | 0.027" (0.68mm) |
|---|
| Online Catalog | SlimStack? Series |
|---|
| Mating Products | WM4664TR-ND - CONN PLUG BTB 6POS DUAL VERT SMDWM4664CT-ND - CONN PLUG BTB 6POS DUAL VERT SMDWM4664DKR-ND - CONN PLUG BTB 6POS DUAL VERT SMD |
|---|
| Other Names | WM4639CT |
|---|
