| Part Number | 5569262-1 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

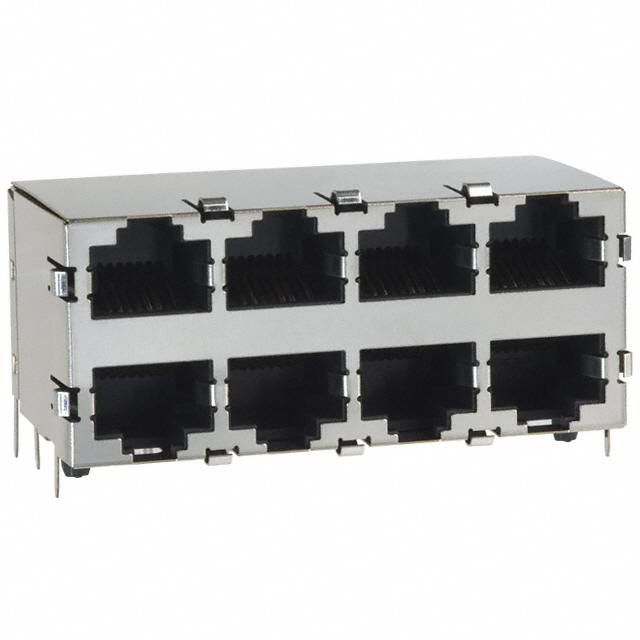

| Description | CONN MOD JACK 8P8C R/A SHIELDED |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Modular Connectors - Jacks |
|---|
| Product Training Modules |
Modular Jack Portfolio
|
|---|
| Featured Product |
TE Connectivity - Modular Jack
Modular Jack Connectors
|
|---|
| 3D Model |
5569262-1.pdf
|
|---|
| Standard Package | 10 |
|---|
| Packaging | Tray |
|---|
| Connector Type | Jack |
|---|
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
|---|
| Number of Ports | 8 |
|---|
| Number of Rows | 2 |
|---|
| Mounting Type | Through Hole |
|---|
| Orientation | 90° Angle (Right) |
|---|
| Termination | Solder |
|---|
| Shielding | Shielded, EMI Finger |
|---|
| Ratings | Cat5 |
|---|
| Features | Board Guide |
|---|
| LED Color | Does Not Contain LED |
|---|
| Ingress Protection | - |
|---|
| Tab Direction | Up and Down |
|---|
| Contact Material | Phosphor Bronze |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 50μin (1.27μm) |
|---|
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Online Catalog | Modular Jacks, Stacked |
|---|
| Other Names | 55692621A31479 |
|---|
