| Part Number | 6116202-1 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|
| Description | CONN MOD JACK 8P8C VERT SHIELDED |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Modular Connectors - Jacks |
|---|
| Product Training Modules |
Modular Jack Portfolio
|
|---|
| Featured Product |
TE Connectivity - Modular Jack
Modular Jack Connectors
|
|---|

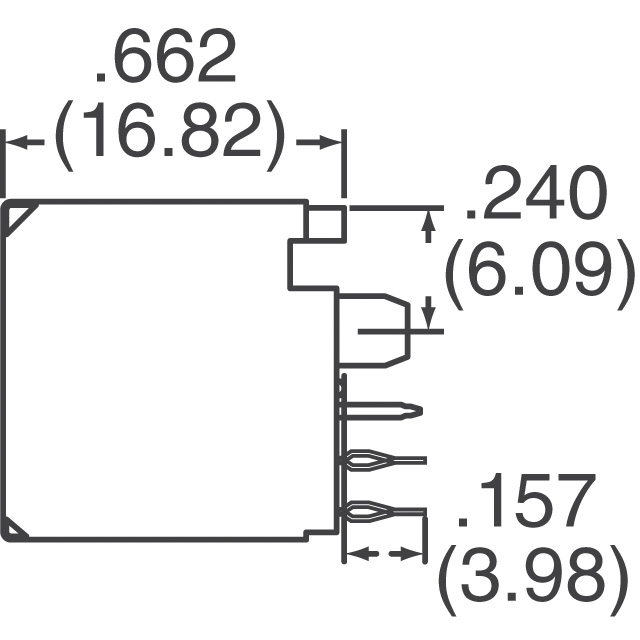

| 3D Model |
6116202-1.pdf
|
|---|
| Standard Package | 29 |
|---|
| Packaging | Tube |
|---|
| Connector Type | Jack |
|---|
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
|---|
| Number of Ports | 1 |
|---|
| Number of Rows | 1 |
|---|
| Mounting Type | Through Hole |
|---|
| Orientation | Vertical |
|---|
| Termination | Press-Fit |
|---|
| Shielding | Shielded |
|---|
| Ratings | Cat5 |
|---|
| Features | Board Guide |
|---|
| LED Color | Does Not Contain LED |
|---|
| Ingress Protection | - |
|---|
| Tab Direction | User Selectable |
|---|
| Contact Material | Phosphor Bronze |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 50μin (1.27μm) |
|---|
| Housing Material | Thermoplastic |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Online Catalog | Modular Jacks, Single Port |
|---|
| Other Names | 61162021A97702 |
|---|
