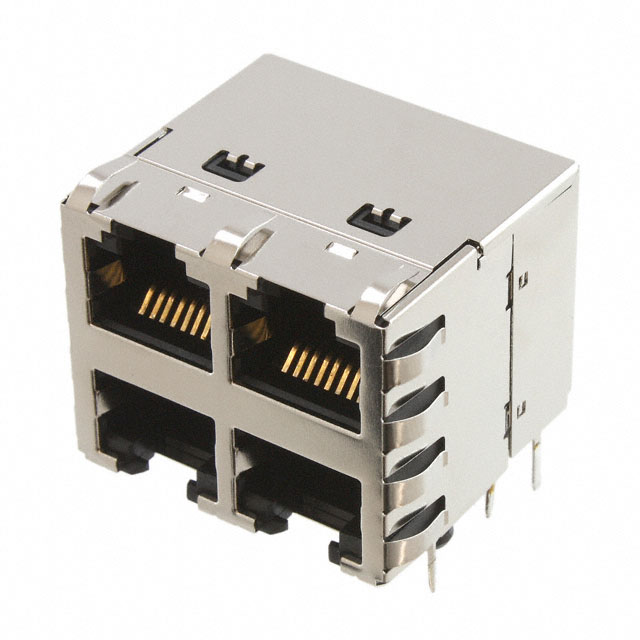

| Part Number | SS-7388H22S-PG4-AC-50 |
|---|
| Manufacturer | Stewart Connector |
|---|
| Description | CONN MOD JACK 8P8C R/A SHIELDED |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | 73 |
|---|
| Family | Modular Connectors - Jacks |
|---|
| PCN Design/Specification |
Multiple Connectors Labeling/Logo 10/Dec/2014
|
|---|
| Standard Package | 30 |
|---|
| Packaging | Bulk |
|---|
| Connector Type | Jack |
|---|
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
|---|
| Number of Ports | 4 |
|---|
| Number of Rows | 2 |
|---|
| Mounting Type | Through Hole |
|---|
| Orientation | 90° Angle (Right) |
|---|
| Termination | Solder |
|---|
| Shielding | Shielded, EMI Finger |
|---|
| Ratings | - |
|---|
| Features | Board Lock |
|---|
| LED Color | Does Not Contain LED |
|---|
| Ingress Protection | - |
|---|
| Tab Direction | Up and Down |
|---|
| Contact Material | Copper Alloy |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 50μin (1.27μm) |
|---|
| Housing Material | Thermoplastic |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Online Catalog | 73 Series |
|---|
| Other Names | 380-1277Q3749398SS-7388H22S-PG4-AC-50-NDSS7388H22SPG4AC50 |
|---|
