| Part Number | 5555140-1 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

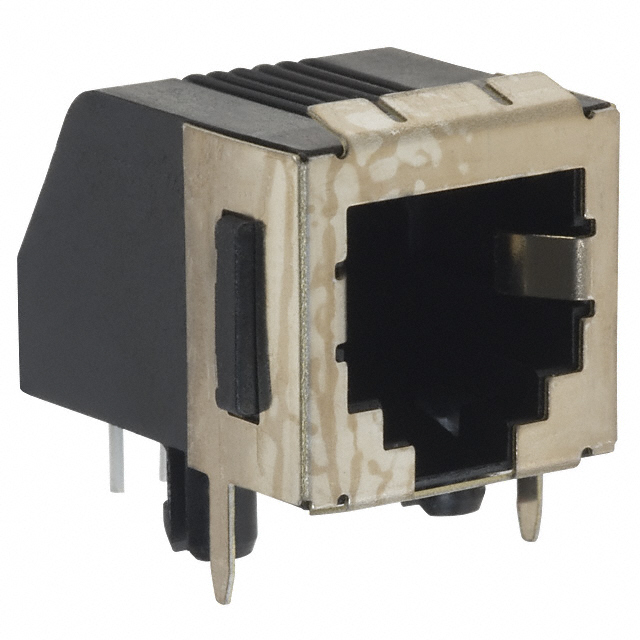

| Description | CONN MOD JACK 6P6C R/A SHIELDED |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Modular Connectors - Jacks |
|---|
| Product Training Modules |
Modular Jack Portfolio
|
|---|
| Featured Product |
TE Connectivity - Modular Jack
Modular Jack Connectors
|
|---|
| 3D Model |
5555140-1.pdf
|
|---|
| Standard Package | 152 |
|---|
| Packaging | Tray |
|---|
| Connector Type | Jack |
|---|
| Number of Positions/Contacts | 6p6c (RJ11, RJ12, RJ14, RJ25) |
|---|
| Number of Ports | 1 |
|---|
| Number of Rows | 1 |
|---|
| Mounting Type | Through Hole |
|---|
| Orientation | 90° Angle (Right) |
|---|
| Termination | Solder |
|---|
| Shielding | Shielded, EMI Finger |
|---|
| Ratings | Cat3 |
|---|
| Features | Board Lock, Panel Stops |
|---|
| LED Color | Does Not Contain LED |
|---|
| Ingress Protection | - |
|---|
| Tab Direction | Down |
|---|
| Contact Material | Phosphor Bronze |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 50μin (1.27μm) |
|---|
| Housing Material | Polybutylene Terephthalate (PBT), Polyester |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Online Catalog | Modular Jacks, Single Port |
|---|
| Associated Product | 106307-1-ND - CONN CAP FOR 6 POS MODULAR JACK |
|---|
| Other Names | 55551401A31435 |
|---|
