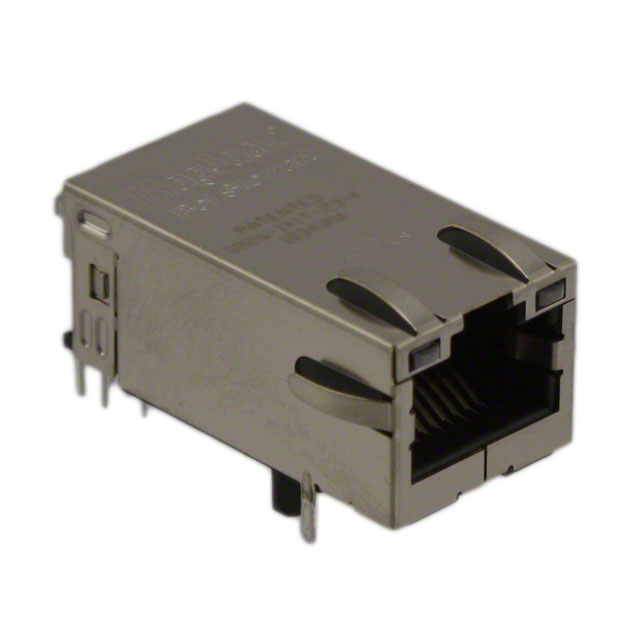

| Part Number | 0826-1X1T-23-F |
|---|
| Manufacturer | Bel Fuse Inc. |
|---|
| Description | CONN MAGJACK 1PORT 1000 BASE-T |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | MagJack? |
|---|
| Family | Modular Connectors - Jacks With Magnetics |
|---|
| Product Training Modules |
MagJack? Integrated Magnetics Modular Jacks
|
|---|
| Featured Product |
Bel - MagJack Integrated Connector Modules
|
|---|
| Standard Package | 40 |
|---|
| Packaging | Tray |
|---|
| Connector Type | RJ45 |
|---|
| Number of Ports | 1 |
|---|
| Number of Rows | 1 |
|---|
| Applications | 10/100/1000 Base-T, AutoMDIX |
|---|
| Mounting Type | Through Hole |
|---|
| Orientation | 90° Angle (Right) |
|---|
| Termination | Solder |
|---|
| Height Above Board | 0.536" (13.61mm) |
|---|
| LED Color | Green, Orange - Yellow |
|---|
| Number of Cores per Jack | 12 |
|---|
| Shielding | Shielded, EMI Finger |
|---|
| Features | Board Guide |
|---|
| Tab Direction | Up |
|---|
| Contact Material | - |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 50μin (1.27μm) |
|---|
| Shield Material | Copper Alloy |
|---|
| Housing Material | Polyamide (PA), Nylon |
|---|
| Operating Temperature | - |
|---|
| Online Catalog | MagJack? Series |
|---|
| Other Names | 08261X1T23-F08261X1T23F380-1121 |
|---|
