| Part Number | 2174803-2 |
|---|
| Manufacturer | TE Connectivity AMP Connectors |
|---|

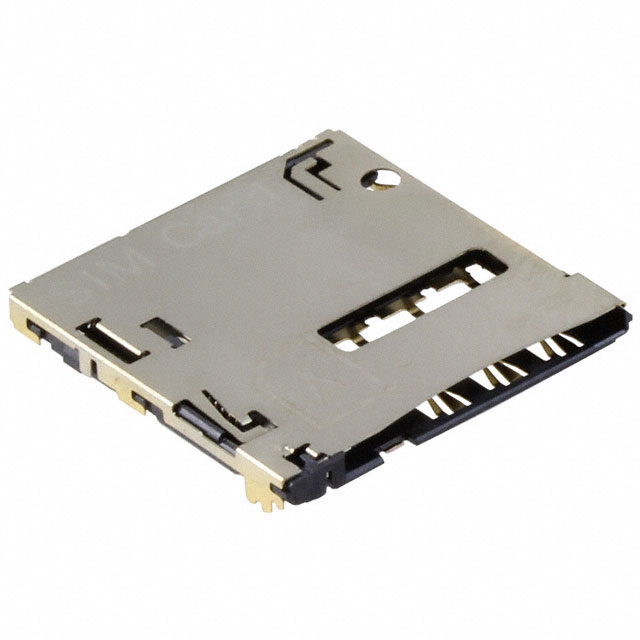

| Description | CONN MICRO SIM CARD PUSH-PUSH |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Memory Connectors - PC Card Sockets |
|---|
| 3D Model |
2174803-2.pdf
|
|---|
| PCN Design/Specification |
2174803-2 Drawing 12/Jan/2015
2174803-2 Plating 21/Jan/2015
2174803-2, 2229333-2 Material 15/Apr/2015
|
|---|
| PCN Other |
2174803, 2229333 Material 26/Feb/2015
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Card Type | Micro SIM |
|---|
| Number of Positions | 7 (6 + 1) |
|---|
| Connector Type | Connector and Ejector |
|---|
| Insertion, Removal Method | Push In, Push Out |
|---|
| Ejector Side | - |
|---|
| Mounting Type | Surface Mount, Right Angle |
|---|
| Features | - |
|---|
| Height Above Board | 0.051" (1.30mm) |
|---|
| Mounting Feature | Normal, Standard - Top |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | - |
|---|
| Online Catalog | SIM, SAM |
|---|
| Other Names | A116334DKR |
|---|
