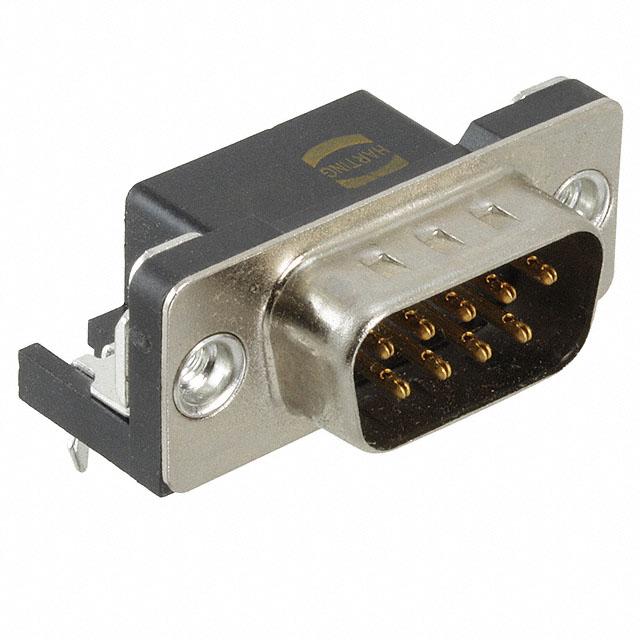

| Part Number | 09681635811 |
|---|
| Manufacturer | Harting |
|---|
| Description | CONN D-SUB PLUG 9POS R/A SOLDER |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | D-Sub Connectors |
|---|
| 3D Model |
Male ang 9 pins bl.stp
Male ang 9 pins bl.igs
Male ang 9 pins bl.wrl
|
|---|
| Standard Package | 50 |
|---|
| Packaging | Bulk |
|---|
| Connector Style | D-Sub |
|---|
| Connector Type | Plug, Male Pins |
|---|
| Number of Positions | 9 |
|---|
| Number of Rows | 2 |
|---|
| Shell Size, Connector Layout | 1 (DE, E) |
|---|
| Contact Type | Signal |
|---|
| Mounting Type | Through Hole, Right Angle |
|---|
| Flange Feature | Housing/Shell (M3) |
|---|
| Termination | Solder |
|---|
| Features | Board Lock, Grounding Indents |
|---|
| Shell Material, Finish | Steel |
|---|
| Contact Finish | - |
|---|
| Contact Finish Thickness | - |
|---|
| Ingress Protection | - |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Voltage Rating | - |
|---|
| Current Rating | - |
|---|
| Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
|---|
| Color | - |
|---|
| Online Catalog | D-Sub |
|---|
| Other Names | 1195-28019681635811 |
|---|
