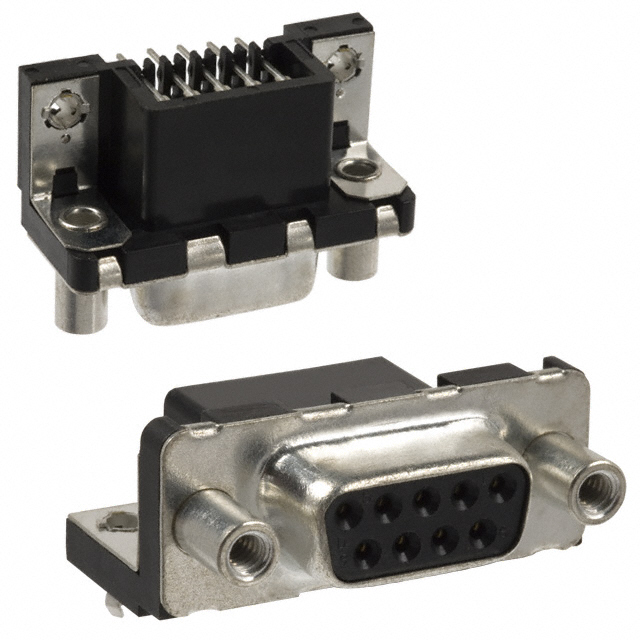

| Part Number | D09S13A4GV00LF |
|---|
| Manufacturer | FCI |
|---|
| Description | CONN D-SUB RCPT 9POS R/A SOLDER |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Delta D |
|---|
| Family | D-Sub Connectors |
|---|
| Product Training Modules |
D-Sub I/O Connectors
|
|---|
| PCN Design/Specification |
Dsub Insulator Raw Material 24/Nov/2009
Delta D Series 30/May/2011
|
|---|
| Standard Package | 30 |
|---|
| Packaging | Tray |
|---|
| Connector Style | D-Sub |
|---|
| Connector Type | Receptacle, Female Sockets |
|---|
| Number of Positions | 9 |
|---|
| Number of Rows | 2 |
|---|
| Shell Size, Connector Layout | 1 (DE, E) |
|---|
| Contact Type | Signal |
|---|
| Mounting Type | Through Hole, Right Angle |
|---|
| Flange Feature | Mating Side; Female Screwlock (4-40) |
|---|
| Termination | Solder |
|---|
| Features | Board Lock |
|---|
| Shell Material, Finish | Steel, Tin Plated |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | Flash |
|---|
| Ingress Protection | - |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Voltage Rating | 300V |
|---|
| Current Rating | 5A |
|---|
| Housing Material | Polybutylene Terephthalate (PBT) |
|---|
| Color | Black |
|---|
| Online Catalog | Delta D Series |
|---|
| Mating Products | 609-1524-ND - CONN DSUB PLUG 9POS STR SLDR CUP609-2805-ND - CONN DSUB PLUG 9POS STR SLDR CUP609-1466-ND - CONN DSUB MALE 9POS CRIMP GOLD |
|---|
| Other Names | 609-1483 |
|---|
