| Part Number | D09P24A4GX00LF |
|---|
| Manufacturer | FCI |
|---|

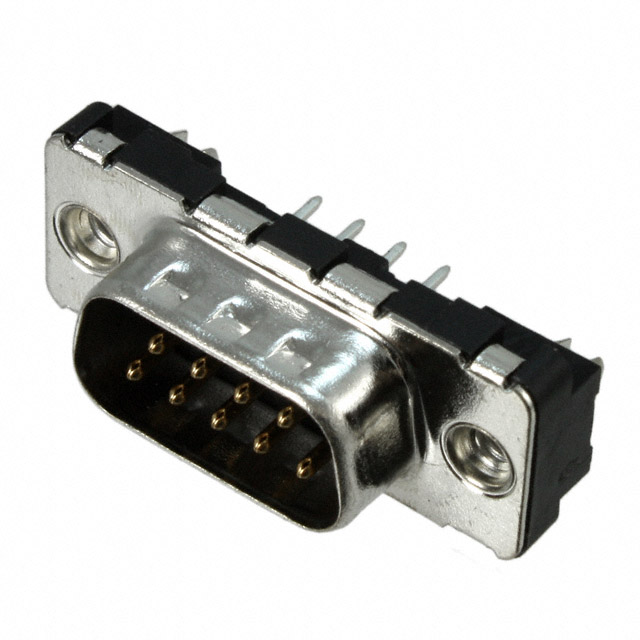

| Description | CONN D-SUB PLUG 9POS VERT SOLDER |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | Delta D |
|---|
| Family | D-Sub Connectors |
|---|
| PCN Design/Specification |
Dsub Insulator Raw Material 24/Nov/2009
Delta D Series 30/May/2011
Delta-D, Compact-D Thread Length 25/Feb/2015
Delta D Male Contacts 07/Oct/2015
|
|---|
| Standard Package | 30 |
|---|
| Packaging | Bulk |
|---|
| Connector Style | D-Sub |
|---|
| Connector Type | Plug, Male Pins |
|---|
| Number of Positions | 9 |
|---|
| Number of Rows | 2 |
|---|
| Shell Size, Connector Layout | 1 (DE, E) |
|---|
| Contact Type | Signal |
|---|
| Mounting Type | Through Hole |
|---|
| Flange Feature | Housing/Shell (4-40) |
|---|
| Termination | Solder |
|---|
| Features | Board Lock, Grounding Indents |
|---|
| Shell Material, Finish | Steel, Tin Plated |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | Flash |
|---|
| Ingress Protection | - |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Voltage Rating | 300V |
|---|
| Current Rating | 5A |
|---|
| Housing Material | Polybutylene Terephthalate (PBT) |
|---|
| Color | Black |
|---|
| Online Catalog | Delta D Series |
|---|
| Mating Products | 609-1525-ND - CONN DSUB RCPT 9POS STR SLDR CUP609-1467-ND - CONN DSUB FEMALE 9POS CRIMP GOLD |
|---|
| Other Names | 609-4447D09P24A4GX00LF-ND |
|---|
