| Part Number | 10090926-P264VLF |
|---|
| Manufacturer | FCI |
|---|

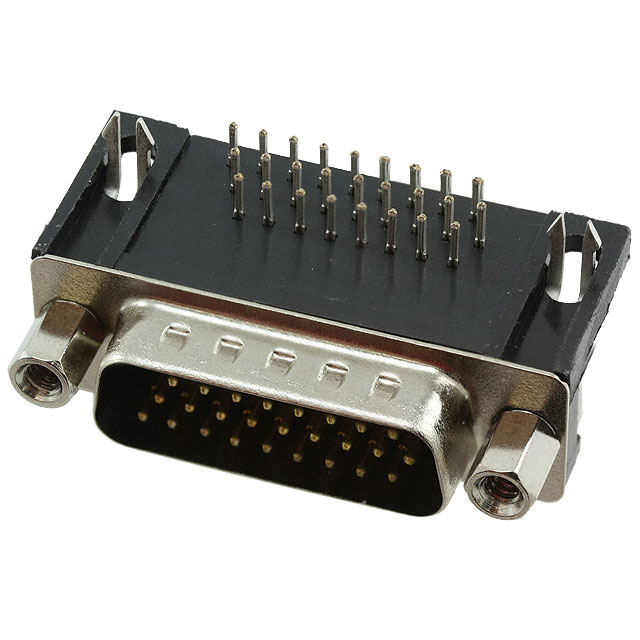

| Description | CONN DSUB HD PLUG 26POS R/A SLDR |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | 10090926 |
|---|
| Family | D-Sub Connectors |
|---|
| Featured Product |
D-Subminiature Connectors High Density
|
|---|
| Standard Package | 70 |
|---|
| Packaging | Tray |
|---|
| Connector Style | D-Sub, High Density |
|---|
| Connector Type | Plug, Male Pins |
|---|
| Number of Positions | 26 |
|---|
| Number of Rows | 3 |
|---|
| Shell Size, Connector Layout | 2 (DA, A) High Density |
|---|
| Contact Type | Signal |
|---|
| Mounting Type | Through Hole, Right Angle |
|---|
| Flange Feature | Mating Side; Female Screwlock (4-40) |
|---|
| Termination | Solder |
|---|
| Features | Board Lock, Grounding Indents |
|---|
| Shell Material, Finish | Steel, Nickel Plated |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | Flash |
|---|
| Ingress Protection | - |
|---|
| Operating Temperature | -55°C ~ 105°C |
|---|
| Voltage Rating | 250V |
|---|
| Current Rating | 2.5A |
|---|
| Housing Material | Thermoplastic, Glass Filled |
|---|
| Color | Black |
|---|
| Online Catalog | 10090769, 10090770, 10090926, 10090928 and 10090929 Series |
|---|
| Mating Products | 609-4033-ND - CONN DSUB HD RCPT 26POS VERT SLD609-4039-ND - DSUB HD FAMLE SOCKET 26POS CRIMP |
|---|
| Other Names | 10090926P264VLF609-4023 |
|---|
