| Part Number | 10067847-001RLF |
|---|
| Manufacturer | FCI |
|---|

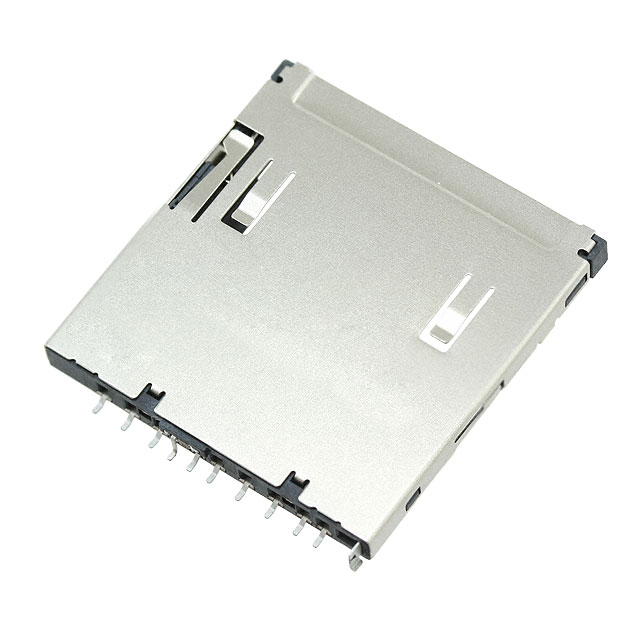

| Description | CONN SD CARD PUSH-PUSH SMD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | - |
|---|
| Family | Memory Connectors - PC Card Sockets |
|---|
| PCN Design/Specification |
SD/USB/Express Cards Printing 12/Mar/2018
SD/USB/Express card Printing 22/May/2014
|
|---|
| PCN Assembly/Origin |
10067847 Series Assembly Machines 22/Jul/2015
SD Card Reader 10067847 Series 07/Aug/2015
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Card Type | Secure Digital - SD |
|---|
| Number of Positions | 12 (9 + 3) |
|---|
| Connector Type | Connector and Ejector |
|---|
| Insertion, Removal Method | Push In, Push Out |
|---|
| Ejector Side | - |
|---|
| Mounting Type | Surface Mount |
|---|
| Features | Board Guide, Switch |
|---|
| Height Above Board | 0.110" (2.80mm) |
|---|
| Mounting Feature | Normal, Standard - Top |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 50μin (1.27μm) |
|---|
| Online Catalog | 10067847 Series |
|---|
| Other Names | 609-3956-1 |
|---|
