| Part Number | 5033981892 |
|---|
| Manufacturer | Molex, LLC |
|---|

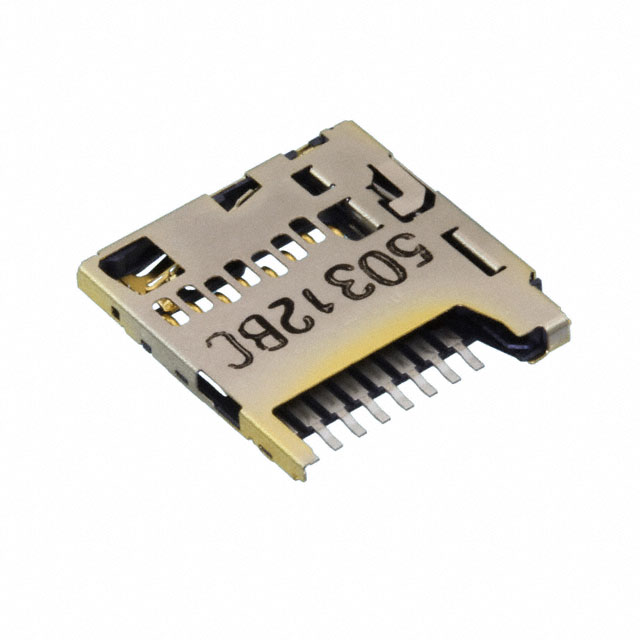

| Description | MICRO SD PUSH/PUSH SMALL 8C |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Connectors, Interconnects |
|---|
| Series | 503398 |
|---|
| Family | Memory Connectors - PC Card Sockets |
|---|
| 3D Model |
503398-1892 .pdf
|
|---|
| PCN Assembly/Origin |
503398 Series 26/Dec/2015
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Card Type | microSD? |
|---|
| Number of Positions | 9 (8 + 1) |
|---|
| Connector Type | Connector and Ejector |
|---|
| Insertion, Removal Method | Push In, Push Out |
|---|
| Ejector Side | - |
|---|
| Mounting Type | Surface Mount, Right Angle |
|---|
| Features | Switch |
|---|
| Height Above Board | 0.050" (1.28mm) |
|---|
| Mounting Feature | Normal, Standard - Top |
|---|
| Contact Finish | Gold |
|---|
| Contact Finish Thickness | 19.7μin (0.50μm) |
|---|
| Online Catalog | microSD? Series |
|---|
| Other Names | WM11190CT |
|---|
