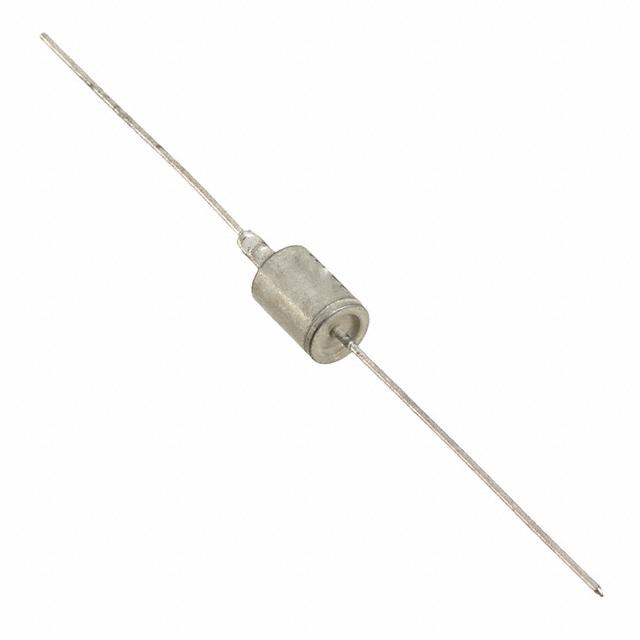

| Part Number | 1N6063A |
|---|
| Manufacturer | Microsemi Commercial Components Group |
|---|
| Description | TVS DIODE 82VWM 137VC DO13 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Circuit Protection |
|---|
| Series | - |
|---|
| Family | TVS - Diodes |
|---|
| Standard Package | 1 |
|---|
| Packaging | Bulk |
|---|
| Type | Zener |
|---|
| Unidirectional Channels | - |
|---|
| Bidirectional Channels | 1 |
|---|
| Voltage - Reverse Standoff (Typ) | 82V |
|---|
| Voltage - Breakdown (Min) | 95V |
|---|
| Voltage - Clamping (Max) @ Ipp | 137V |
|---|
| Current - Peak Pulse (10/1000μs) | 11A |
|---|
| Power - Peak Pulse | 1500W (1.5kW) |
|---|
| Power Line Protection | No |
|---|
| Applications | General Purpose |
|---|
| Capacitance @ Frequency | - |
|---|
| Operating Temperature | -55°C ~ 175°C (TJ) |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | DO-13 |
|---|
| Supplier Device Package | DO-13 |
|---|
| Other Names | 1N6063AMS |
|---|
