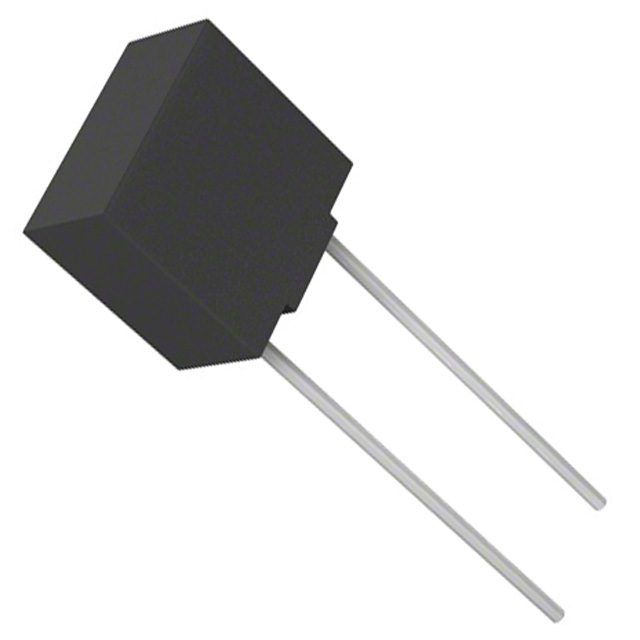

| Part Number | SS-5-1A-AP |
|---|
| Manufacturer | Eaton Bussmann |
|---|
| Description | FUSE BOARD MNT 1A 250VAC RADIAL |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Circuit Protection |
|---|
| Series | SS-5 |
|---|
| Family | Fuses |
|---|
| PCN Design/Specification |
SS-5(H) Ammo Pack Paper Thickness 30/Aug/2011
S -8yyy,HTC-yy,PC,SR-5,SS-5 Series 01/May/2014
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 1,000 |
|---|
| Packaging | Tape & Box (TB) |
|---|
| Fuse Type | Board Mount (Cartridge Style Excluded) |
|---|
| Current Rating | 1A |
|---|
| Voltage Rating - AC | 250V |
|---|
| Voltage Rating - DC | - |
|---|
| Response Time | Slow |
|---|
| Package / Case | Radial, Box |
|---|
| Mounting Type | Through Hole |
|---|
| Breaking Capacity @ Rated Voltage | 35A |
|---|
| Melting I2t | 7.4 |
|---|
| Approvals | CQC, cULus, EK-MARK, PSE, SEMKO, VDE |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|
| Color | - |
|---|
| Size / Dimension | 0.335" L x 0.169" W x 0.329" H (8.50mm x 4.30mm x 8.35mm) |
|---|
| DC Cold Resistance | 0.08075 Ohm |
|---|
| Online Catalog | SS-5 Series |
|---|
| Other Names | 283-3214-3SS-5-1A-AP-NDSS51AAP |
|---|
