| Part Number | SMCJ26A |
|---|
| Manufacturer | Bourns Inc. |
|---|
| Description | TVS DIODE 26VWM 42.1VC DO214AB |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Circuit Protection |
|---|
| Series | SMCJ |
|---|
| Family | TVS - Diodes |
|---|
| Featured Product |
SMAJ/SMBJ/SMCJ/SMLJ Discrete TVS Diodes
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Type | Zener |
|---|
| Unidirectional Channels | 1 |
|---|
| Bidirectional Channels | - |
|---|
| Voltage - Reverse Standoff (Typ) | 26V |
|---|
| Voltage - Breakdown (Min) | 28.9V |
|---|
| Voltage - Clamping (Max) @ Ipp | 42.1V |
|---|
| Current - Peak Pulse (10/1000μs) | 35.7A |
|---|
| Power - Peak Pulse | 1500W (1.5kW) |
|---|
| Power Line Protection | No |
|---|
| Applications | General Purpose |
|---|
| Capacitance @ Frequency | - |
|---|
| Operating Temperature | -55°C ~ 150°C (TJ) |
|---|
| Mounting Type | Surface Mount |
|---|

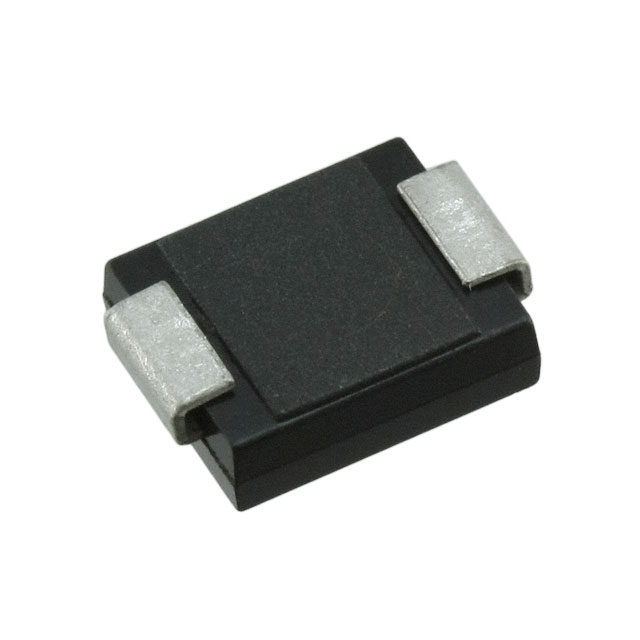

| Package / Case | DO-214AB, SMC |
|---|
| Supplier Device Package | SMC (DO-214AB) |
|---|
| Online Catalog | SMCJ Series |
|---|
| Other Names | SMCJ26ABCT |
|---|
