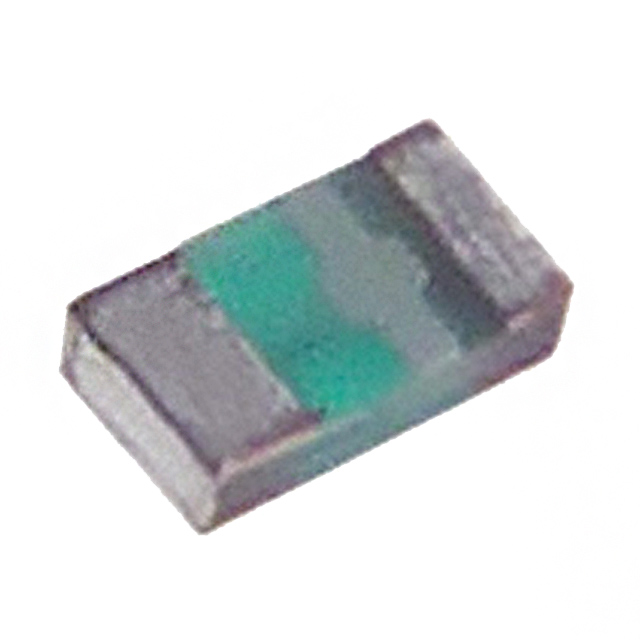

| Part Number | 0435.500KR |
|---|
| Manufacturer | Littelfuse Inc. |
|---|
| Description | FUSE BOARD MNT 500MA 32VDC 0402 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Circuit Protection |
|---|
| Series | 435 |
|---|
| Family | Fuses |
|---|
| Product Training Modules |
Fuseology - Introduction to Fuses
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Fuse Type | Board Mount (Cartridge Style Excluded) |
|---|
| Current Rating | 500mA |
|---|
| Voltage Rating - AC | - |
|---|
| Voltage Rating - DC | 32V |
|---|
| Response Time | Fast |
|---|
| Package / Case | 0402 (1005 Metric) |
|---|
| Mounting Type | Surface Mount |
|---|
| Breaking Capacity @ Rated Voltage | 35A |
|---|
| Melting I2t | 0.0053 |
|---|
| Approvals | CSA, UL |
|---|
| Operating Temperature | -55°C ~ 90°C |
|---|
| Color | - |
|---|
| Size / Dimension | 0.039" L x 0.020" W x 0.013" H (0.99mm x 0.51mm x 0.33mm) |
|---|
| DC Cold Resistance | 0.16 Ohm |
|---|
| Online Catalog | SlimLine? 435 Series |
|---|
| Other Names | F1442CT |
|---|
