| Part Number | SMF15A |
|---|
| Manufacturer | Littelfuse Inc. |
|---|
| Description | TVS DIODE 15VWM 24.4VC SOD123F |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Circuit Protection |
|---|
| Series | SMF |
|---|
| Family | TVS - Diodes |
|---|
| Product Training Modules |
Transient Voltage Suppression (TVS) Diodes
TVS Diode Arrays - ESD Suppressors for I/O Interfaces
|
|---|
| Featured Product |
SMF Series 200 W Low-Profile SOD-123 TVS Diode
|
|---|
| EDA / CAD Models |
Download from Accelerated Designs |
|---|
| Standard Package | 3,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Type | Zener |
|---|
| Unidirectional Channels | 1 |
|---|
| Bidirectional Channels | - |
|---|
| Voltage - Reverse Standoff (Typ) | 15V |
|---|
| Voltage - Breakdown (Min) | 16.7V |
|---|
| Voltage - Clamping (Max) @ Ipp | 24.4V |
|---|
| Current - Peak Pulse (10/1000μs) | 8.2A |
|---|
| Power - Peak Pulse | 200W |
|---|
| Power Line Protection | No |
|---|
| Applications | General Purpose |
|---|
| Capacitance @ Frequency | - |
|---|
| Operating Temperature | -55°C ~ 150°C (TJ) |
|---|
| Mounting Type | Surface Mount |
|---|

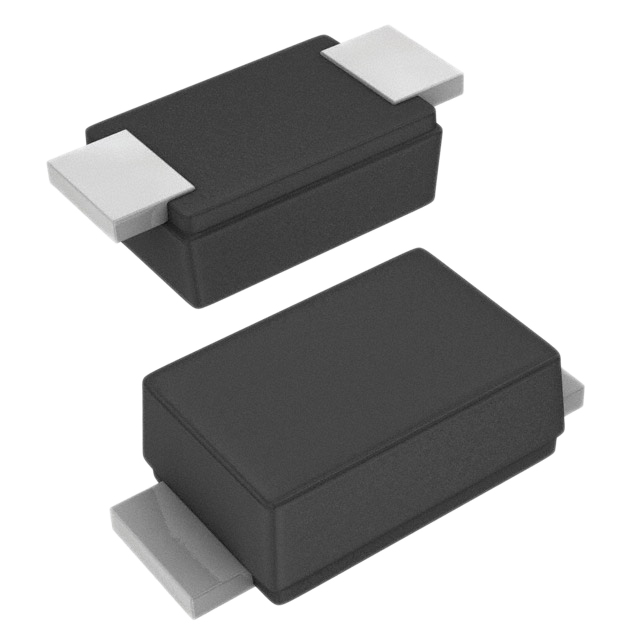

| Package / Case | SOD-123F |
|---|
| Supplier Device Package | SOD-123F |
|---|
| Online Catalog | SMF Series |
|---|
| Other Names | F5817TR |
|---|
