| Part Number | BLM15HG601SN1D |
|---|---|
| Manufacturer | Murata Electronics North America |
| Description | FILTER CHIP 600 OHM 300MA 0402 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70,000 |
| Datasheet | BLM15HG601SN1D |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |

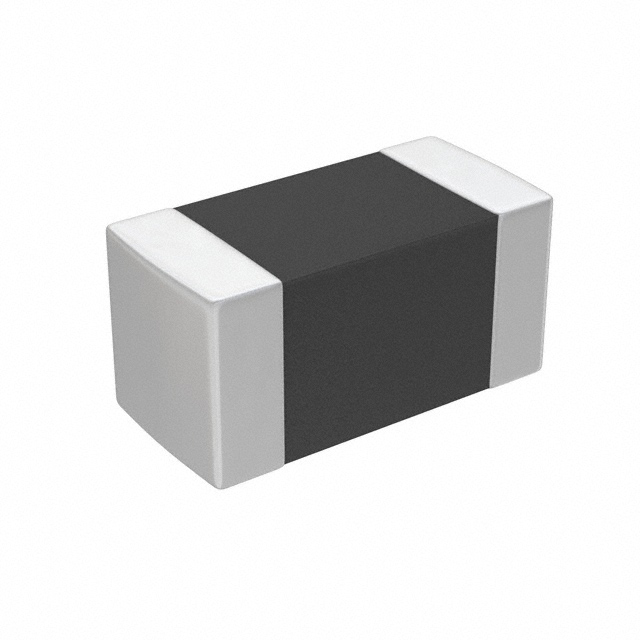

BLM15HG601SN1D
-
- USD 0.00
Product Details
| Part Number | BLM15HG601SN1D |
|---|---|
| Manufacturer | Murata Electronics North America |
| Description | FILTER CHIP 600 OHM 300MA 0402 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Filters |
| Series | EMIFIL?, BLM15H |
| Family | Ferrite Beads and Chips |
| Product Training Modules | Ferrite Beads and Arrays |
| Standard Package | 10,000 |
| Packaging | Tape & Reel (TR) |
| Impedance @ Frequency | 600 Ohm @ 100MHz |
| Current Rating | 300mA |
| DC Resistance (DCR) | 700 mOhm Max |
| Filter Type | Differential Mode - Single |
| Package / Case | 0402 (1005 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.022" (0.55mm) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Online Catalog | EMIFIL? BLM15H Series |
| Other Names | 490-3998-2 |
