| Part Number | 74279215 |
|---|---|
| Manufacturer | Wurth Electronics Inc |

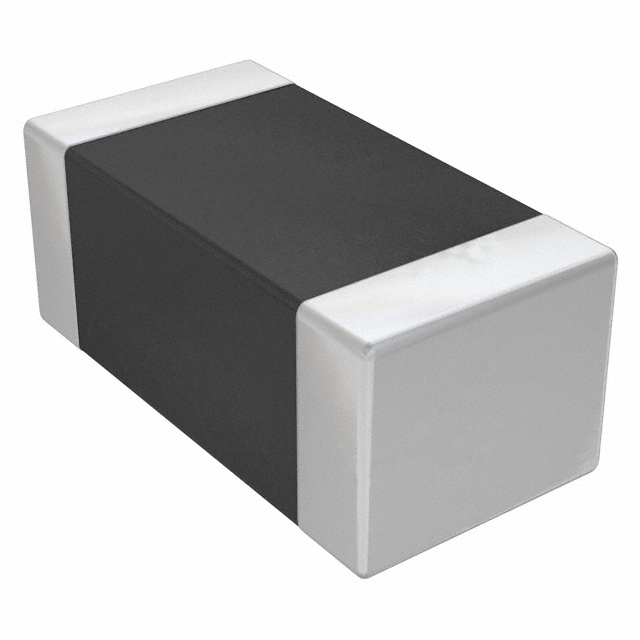

| Description | FERRITE BEAD 80 OHM 3.0A 1206 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15,000 |
| Datasheet | 74279215 |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
74279215
-
- USD 0.00
Product Details
| Part Number | 74279215 |
|---|---|
| Manufacturer | Wurth Electronics Inc |
| Description | FERRITE BEAD 80 OHM 3.0A 1206 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Filters |
| Series | WE-CBF |
| Family | Ferrite Beads and Chips |
| Design Resources | Spice Model Library |
| Featured Product | Chip Bead Ferrites WE-CBF |
| 3D Model | CBF 1206.igs CBF 1206.stp CBF 1206.wrl |
| Standard Package | 3,000 |
| Packaging | Tape & Reel (TR) |
| Impedance @ Frequency | 80 Ohm @ 100MHz |
| Current Rating | 3A |
| DC Resistance (DCR) | 30 mOhm Max |
| Filter Type | Differential Mode - Single |
| Package / Case | 1206 (3216 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.051" (1.30mm) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Online Catalog | WE-CBF Series |
| Other Names | 732-1629-2 |
