| Part Number | 742792040 |
|---|
| Manufacturer | Wurth Electronics Inc |
|---|

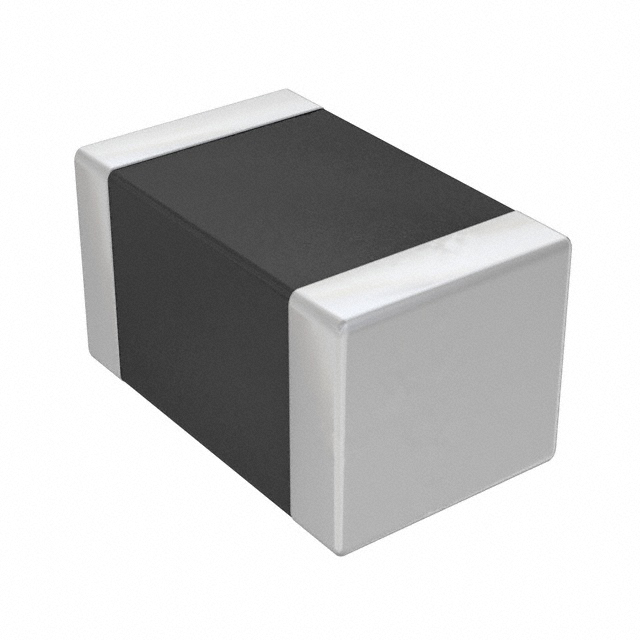

| Description | FERRITE BEAD 600 OHM 2.0A 0805 |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Filters |
|---|
| Series | WE-CBF |
|---|
| Family | Ferrite Beads and Chips |
|---|
| Design Resources |
Spice Model Library
|
|---|
| Featured Product |
Chip Bead Ferrites WE-CBF
|
|---|
| 3D Model |
CBF 0805.igs
CBF 0805.stp
CBF 0805.wrl
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Cut Tape (CT) |
|---|
| Impedance @ Frequency | 600 Ohm @ 100MHz |
|---|
| Current Rating | 2A |
|---|
| DC Resistance (DCR) | 150 mOhm Max |
|---|
| Filter Type | Differential Mode - Single |
|---|
| Package / Case | 0805 (2012 Metric) |
|---|
| Mounting Type | Surface Mount |
|---|
| Height (Max) | 0.043" (1.10mm) |
|---|
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
|---|
| Online Catalog | WE-CBF Series |
|---|
| Kits | 732-1916-ND - KIT FERRITE SMD 0402-0805 SIZES732-1644-ND - KIT DESIGN FERRITE CHIP BEAD |
|---|
| Related Products | MAX9736AETJ+TTR-ND - IC AMP AUDIO 35W MONO D 32TQFNMAX9736AETJ+TCT-ND - IC AMP AUDIO 35W MONO D 32TQFNMAX9736AETJ+TDKR-ND - IC AMP AUDIO 35W MONO D 32TQFN296-24928-5-ND - IC IEEE 802.3-2005 POE 14TSSOPMAX98400AETX+-ND - IC AMP AUDIO STEREO D 36TQFN296-23547-5-ND - IC IEEE 802.3-2005 POE 14-TSSOPMAX9 |
|---|
| Other Names | 732-1620-1 |
|---|
