| Part Number | ACF321825-470-TD01 |
|---|
| Manufacturer | TDK Corporation |
|---|
| Description | FILTER 3-TERM 450MHZ 300MA SMD |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Filters |
|---|
| Series | ACF |
|---|
| Family | EMI/RFI Filters (LC, RC Networks) |
|---|
| Product Training Modules |
EMC Components
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Type | Low Pass |
|---|
| Technology | LC (T-Type) |
|---|
| Number of Channels | 1 |
|---|
| Center / Cutoff Frequency | 450MHz (Cutoff) |
|---|
| Attenuation Value | 25dB @ 420MHz ~ 500MHz |
|---|
| Resistance - Channel (Ohms) | 0.15 |
|---|
| Current | 300mA |
|---|
| Values | - |
|---|
| ESD Protection | No |
|---|
| Filter Order | 3rd |
|---|
| Applications | Data Lines for Mobile Devices |
|---|
| Package / Case | 1210 (3225 Metric), 3 PC Pad |
|---|

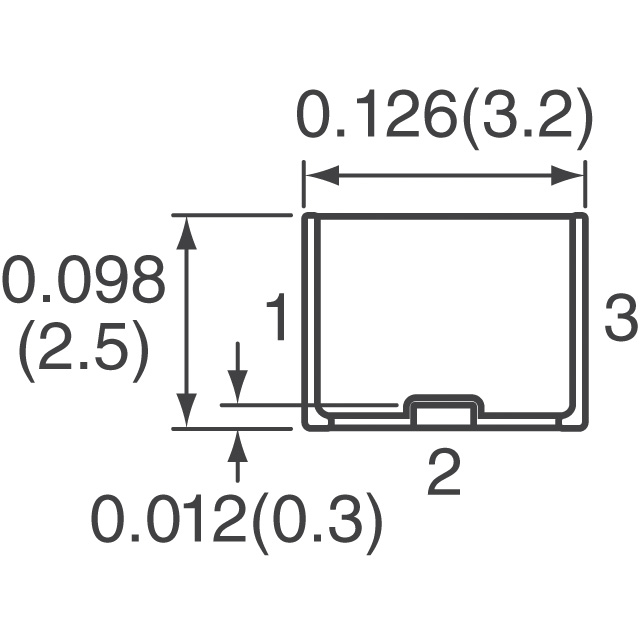

| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
|---|
| Height | 0.079" (2.00mm) |
|---|
| Operating Temperature | -25°C ~ 85°C |
|---|
| Online Catalog | ACF and ACH Series |
|---|
| Other Names | 445-2074-6 |
|---|
