| Part Number | EMIF08-1502M16 |
|---|
| Manufacturer | STMicroelectronics |
|---|
| Description | IC EMI FILTER 8LINE 16-MICRO QFN |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Filters |
|---|
| Series | EMIF |
|---|
| Family | EMI/RFI Filters (LC, RC Networks) |
|---|
| Other Related Documents |
EMIF08-1502M16 View All Specifications
EMIF08-1502M16 View All Specifications
|
|---|
| Standard Package | 1 |
|---|
| Packaging | Digi-Reel? |
|---|
| Type | Low Pass |
|---|
| Technology | RC (Pi) |
|---|
| Number of Channels | 8 |
|---|
| Center / Cutoff Frequency | 300MHz (Cutoff) |
|---|
| Attenuation Value | 30dB @ 900MHz ~ 1.8GHz |
|---|
| Resistance - Channel (Ohms) | 170 |
|---|
| Current | 10mA |
|---|
| Values | R = 170 Ohms, C = 14pF (Total) |
|---|
| ESD Protection | Yes |
|---|
| Filter Order | 2nd |
|---|
| Applications | Data Lines for Mobile Devices |
|---|

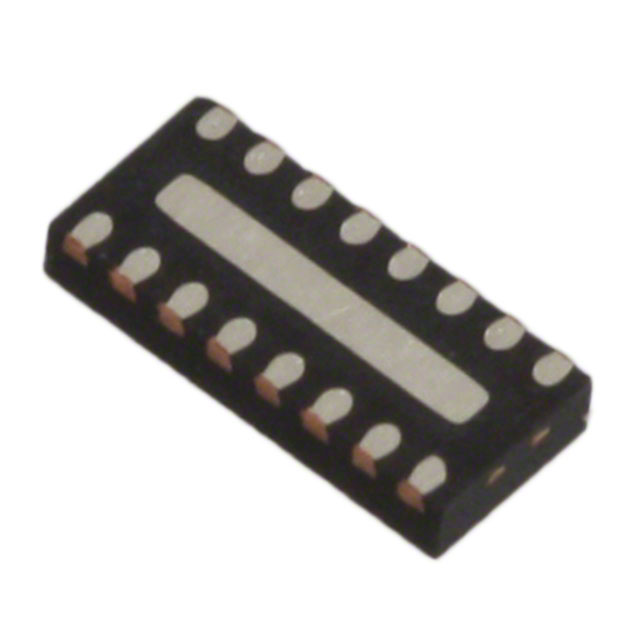

| Package / Case | 16-UFDFN Exposed Pad |
|---|
| Size / Dimension | 0.130" L x 0.059" W (3.30mm x 1.50mm) |
|---|
| Height | 0.024" (0.60mm) |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Online Catalog | IPAD? Series |
|---|
| Other Names | 497-7743-6 |
|---|
