| Part Number | ACM2012-121-2P-T001 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | CHOKE COMM MODE AUTO 120 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2,000 |
| Datasheet | ACM2012-121-2P-T001 |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |

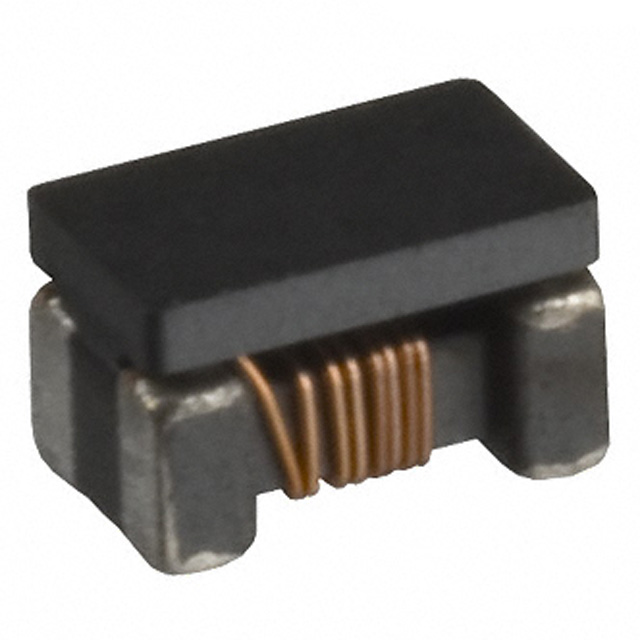

ACM2012-121-2P-T001
-
- USD 0.00
Product Details
| Part Number | ACM2012-121-2P-T001 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | CHOKE COMM MODE AUTO 120 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Filters |
| Series | ACM |
| Family | Common Mode Chokes |
| Product Training Modules | EMC Components |
| Other Drawings | ACM2012 Series Schematic ACM2012 Series Footprint |
| Standard Package | 2,000 |
| Packaging | Tape & Reel (TR) |
| Filter Type | Data, Signal Line |
| Number of Lines | 2 |
| Inductance | - |
| Current | 370mA |
| DC Resistance (DCR) | 220 mOhm Max |
| Impedance | 120 Ohm |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height (Max) | 0.051" (1.30mm) |
| Package / Case | Horizontal, 4 PC Pad |
| Operating Temperature | -40°C ~ 105°C |
| Online Catalog | ACM2012 Series |
| Other Names | 445-8664-2ACM20121212PT001 |
