| Part Number | B82724J2202N1 |
|---|---|
| Manufacturer | EPCOS (TDK) |

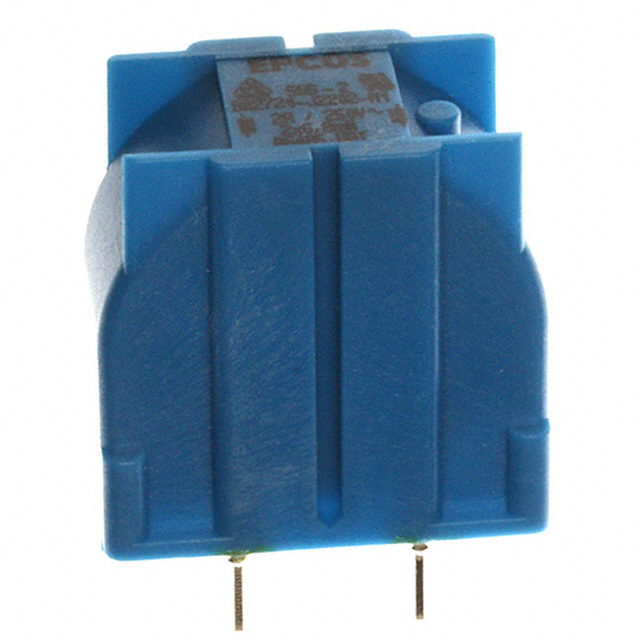

| Description | DOUBLE CHOKE 6.8MH 2A VERT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1,338 |
| Datasheet | B82724J2202N1 |
| Minimum Order: $100 USD | |
| Request for Quote to us through Email or Phone call on quanitities greater than those displayed or for price adjustment. | |
B82724J2202N1
-
- USD 3.44
Product Details
| Part Number | B82724J2202N1 |
|---|---|
| Manufacturer | EPCOS (TDK) |
| Description | DOUBLE CHOKE 6.8MH 2A VERT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Category | Filters |
| Series | B8272 |
| Family | Common Mode Chokes |
| Standard Package | 240 |
| Packaging | Tray |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance | 6.8mH |
| Current | 2A |
| DC Resistance (DCR) | 170 mOhm |
| Impedance | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.232" L x 0.728" W (31.30mm x 18.50mm) |
| Height (Max) | 1.307" (33.20mm) |
| Package / Case | Vertical, 4 PC Pin |
| Operating Temperature | -40°C ~ 125°C |
| Online Catalog | B82724 |
| Other Names | 495-2752B82724J2202N 1B82724J2202N001 |
