| Part Number | ADS1286UB |
|---|
| Manufacturer | Texas Instruments |
|---|
| Description | IC 12BIT 20K UNIPOL A/D 8SOIC |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | - |
|---|
| Family | Data Acquisition - Analog to Digital Converters (ADC) |
|---|
| Product Training Modules |
Data Converter Basics
|
|---|
| Featured Product |
ADS1286 Micro-Power Sampling ADC
|
|---|
| Manufacturer Product Page |
ADS1286UB Specifications
|
|---|
| Standard Package | 75 |
|---|
| Packaging | Tube |
|---|
| Number of Bits | 12 |
|---|
| Sampling Rate (Per Second) | 20k |
|---|
| Number of Inputs | 1 |
|---|
| Input Type | Differential |
|---|
| Data Interface | SPI |
|---|
| Configuration | S/H-ADC |
|---|
| Ratio - S/H:ADC | 1:1 |
|---|
| Number of A/D Converters | 1 |
|---|
| Architecture | SAR |
|---|
| Reference Type | External |
|---|
| Voltage - Supply, Analog | 5V |
|---|
| Voltage - Supply, Digital | 5V |
|---|
| Features | - |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|

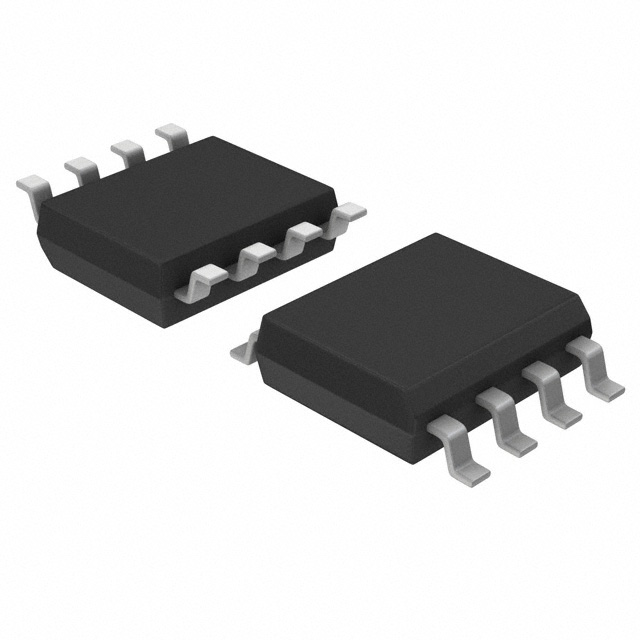

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
|---|
| Supplier Device Package | 8-SOIC |
|---|
