| Part Number | ADS1244IDGSR |
|---|
| Manufacturer | Texas Instruments |
|---|
| Description | IC ADC LP CONVERT 24BIT 10-MSOP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | - |
|---|
| Family | Data Acquisition - Analog to Digital Converters (ADC) |
|---|
| Product Training Modules |
Data Converter Basics
|
|---|
| Video File |
Nuts and Bolts of the Delta-Sigma Converter
|
|---|
| Manufacturer Product Page |
ADS1244IDGSR Specifications
|
|---|
| Standard Package | 2,500 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Number of Bits | 24 |
|---|
| Sampling Rate (Per Second) | 15 |
|---|
| Number of Inputs | 1 |
|---|
| Input Type | Differential, Single Ended |
|---|
| Data Interface | SPI |
|---|
| Configuration | ADC |
|---|
| Ratio - S/H:ADC | - |
|---|
| Number of A/D Converters | 1 |
|---|
| Architecture | Sigma-Delta |
|---|
| Reference Type | External |
|---|
| Voltage - Supply, Analog | 2.5 V ~ 5.25 V |
|---|
| Voltage - Supply, Digital | 1.8 V ~ 3.6 V |
|---|
| Features | - |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|

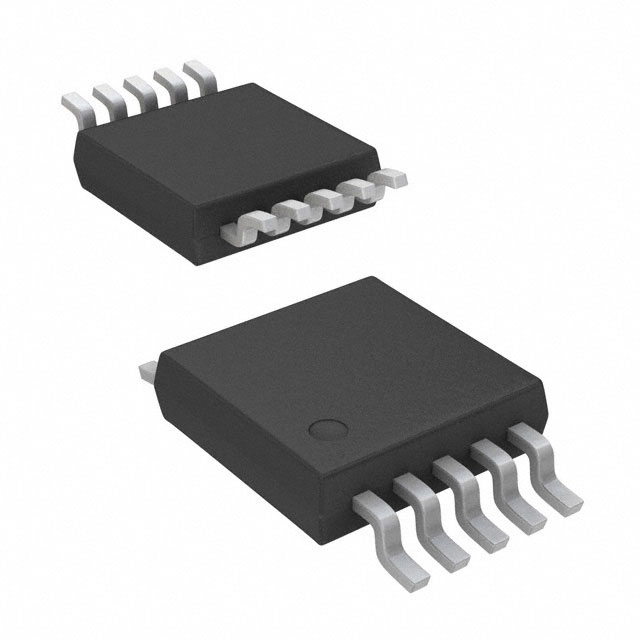

| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
|---|
| Supplier Device Package | 10-VSSOP |
|---|
| For Use With | 296-18359-ND - EVALUATION MODULE FOR ADS1244 |
|---|
