| Part Number | ADS2807Y/1K5G4 |
|---|
| Manufacturer | Texas Instruments |
|---|
| Description | IC ADC 12BIT DUAL 50MHZ 64-HTQFP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | - |
|---|
| Family | Data Acquisition - Analog to Digital Converters (ADC) |
|---|
| Product Training Modules |
Data Converter Basics
|
|---|
| PCN Assembly/Origin |
Qualification Mold Compound 30/Sep/2014
|
|---|
| Manufacturer Product Page |
ADS2807Y/1K5G4 Specifications
|
|---|
| Standard Package | 1,500 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Number of Bits | 12 |
|---|
| Sampling Rate (Per Second) | 50M |
|---|
| Number of Inputs | 2 |
|---|
| Input Type | Differential, Single Ended |
|---|
| Data Interface | Parallel |
|---|
| Configuration | S/H-ADC |
|---|
| Ratio - S/H:ADC | 1:1 |
|---|
| Number of A/D Converters | 2 |
|---|
| Architecture | Pipelined |
|---|
| Reference Type | External, Internal |
|---|
| Voltage - Supply, Analog | 5V |
|---|
| Voltage - Supply, Digital | 3 V ~ 5 V |
|---|
| Features | Simultaneous Sampling |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|

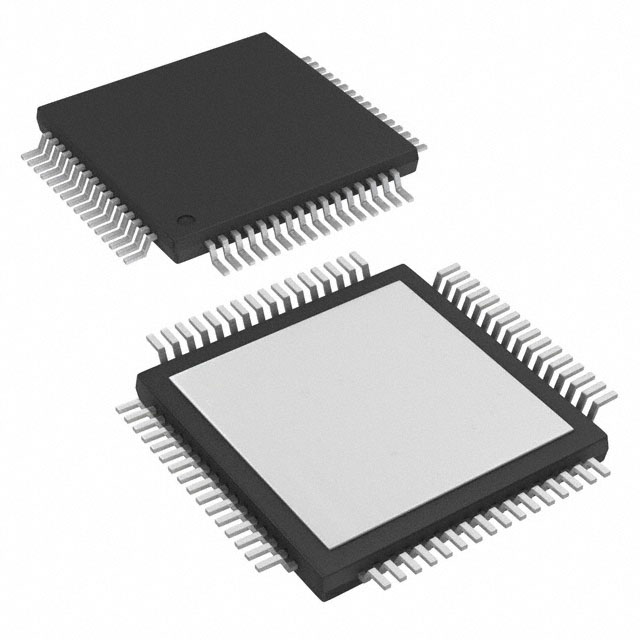

| Package / Case | 64-TQFP Exposed Pad |
|---|
| Supplier Device Package | 64-HTQFP (10x10) |
|---|
| For Use With | 296-19908-ND - EVAL MOD FOR ADS2807 |
|---|
