| Part Number | ADS7953SBDBTR |
|---|
| Manufacturer | Texas Instruments |
|---|
| Description | IC ADC 12BIT SER 1M 38TSSOP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | microPOWER? |
|---|
| Family | Data Acquisition - Analog to Digital Converters (ADC) |
|---|
| Product Training Modules |
Data Converter Basics
|
|---|
| Featured Product |
ADS79XX
|
|---|
| PCN Design/Specification |
Copper Bond Wire Revision A 04/Dec/2013
|
|---|
| Manufacturer Product Page |
ADS7953SBDBTR Specifications
|
|---|
| Standard Package | 2,000 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Number of Bits | 12 |
|---|
| Sampling Rate (Per Second) | 1M |
|---|
| Number of Inputs | 16 |
|---|
| Input Type | Single Ended |
|---|
| Data Interface | SPI |
|---|
| Configuration | MUX-S/H-ADC |
|---|
| Ratio - S/H:ADC | 1:1 |
|---|
| Number of A/D Converters | 1 |
|---|
| Architecture | SAR |
|---|
| Reference Type | External |
|---|
| Voltage - Supply, Analog | 2.7 V ~ 5.25 V |
|---|
| Voltage - Supply, Digital | 1.7 V ~ 5.25 V |
|---|
| Features | - |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|

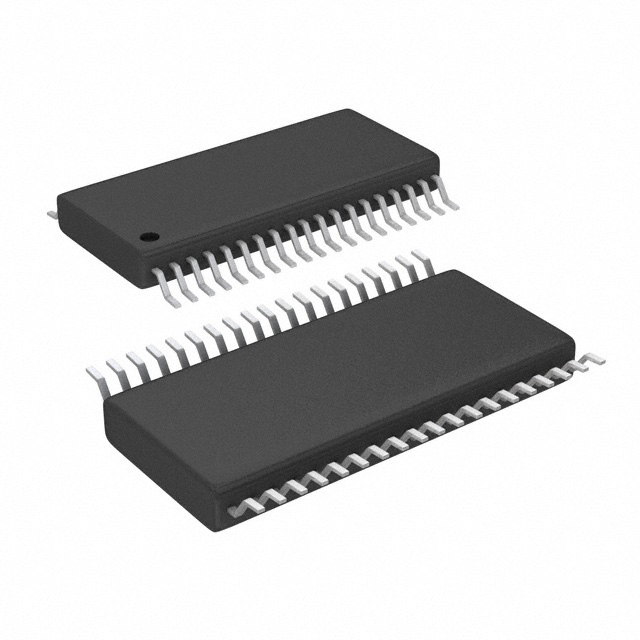

| Package / Case | 38-TFSOP (0.173", 4.40mm Width) |
|---|
| Supplier Device Package | 38-TSSOP |
|---|
| For Use With | 296-30305-ND - KIT PERFORMANCE DEMO FOR ADS7953ADS7953EVM-ND - EVALUATION MODULE FOR ADS7953 |
|---|
| Other Names | ADS7953SBDBTRG4ADS7953SBDBTRG4-ND |
|---|
