| Part Number | ADP5040ACPZ-1-R7 |
|---|
| Manufacturer | Analog Devices Inc. |
|---|
| Description | IC REG TRPL BCK/LINEAR 20LFCSP |
|---|
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
|---|
| Category | Integrated Circuits (ICs) |
|---|
| Series | - |
|---|
| Family | PMIC - Voltage Regulators - Linear + Switching |
|---|
| Mfg Application Notes |
Solution for Ultrasonic Non-Destructive Testing
Spectrum Analyzer Solutions
RF Signal Source Solutions
|
|---|
| PCN Assembly/Origin |
Assembly and Test Transfer LFCSP Devices 22/Oct/2013
Assembly/Test Site Revision F 06/Aug/2014
|
|---|
| Standard Package | 1,500 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Topology | Step-Down (Buck) Synchronous (1), Linear (LDO) (2) |
|---|
| Function | Any Function |
|---|
| Number of Outputs | 3 |
|---|
| Frequency - Switching | 3MHz |
|---|
| Voltage/Current - Output 1 | 0.8 V ~ 3.8 V, 1.2A |
|---|
| Voltage/Current - Output 2 | 0.8 V ~ 5.2 V, 300mA |
|---|
| Voltage/Current - Output 3 | 0.8 V ~ 5.2 V, 300mA |
|---|
| w/LED Driver | No |
|---|
| w/Supervisor | No |
|---|
| w/Sequencer | No |
|---|
| Voltage - Supply | 1.7 V ~ 5.5 V |
|---|
| Operating Temperature | -40°C ~ 125°C |
|---|
| Mounting Type | Surface Mount |
|---|

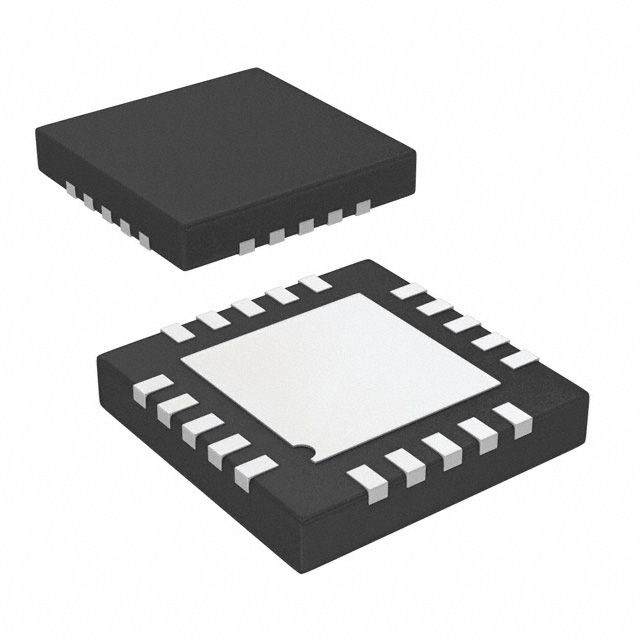

| Package / Case | 20-WFQFN Exposed Pad, CSP |
|---|
| Supplier Device Package | 20-LFCSP-WQ (4x4) |
|---|
| Online Catalog | Linear + Switching |
|---|
| Other Names | ADP5040ACPZ-1-R7TRADP5040ACPZ1R7 |
|---|
